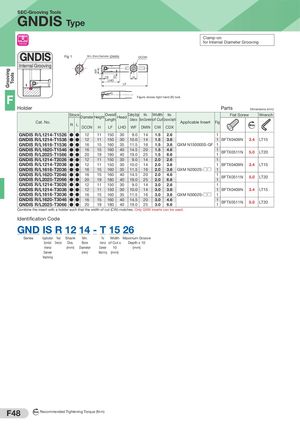

Общий каталог Sumitomo 2019 - 2020 - страница 362
Навигация
Каталог Sumitomo запасные части
Каталог Sumitomo сплавы и режимы
Техническая информация Sumitomo
Каталог Sumitomo пластины с алмазными вставками Sumidia
Каталог Sumitomo специальные торцевые фрезы
Общий каталог Sumitomo 2018 - 2019
GNDIS SEC-Grooving Tools
Clamp-on for Internal Diameter Grooving Internal
GNDIS
Fig 1 Min. Bore Diameter (DMIN) DCON
Internal Grooving
CW H LHD LF
F
Figure shows right hand (R) tool.
Holder Parts
Dimensions (mm)
Stock Overall Cutting Edge Min. Width Max. Flat Screw Wrench
Diameter Height Head
Length Distance Bore Diameter of Cut Groove Depth
Cat. No. Applicable Insert Fig
R L N m
DCON H LF LHD WF DMIN CW CDX
| GNDIS R/L1214-T1526 | 12 | 11 | 150 | 30 | 9.0 | 14 | 1.5 | 2.6 | 1 | |||||
| GNDIS R/L1214-T1536 | 12 | 11 | 150 | 30 | 10.0 | 14 | 1.5 | 3.6 | 1 | BFTX0409N | 3.4 | LT15 | ||
| GNDIS R/L1616-T1536 | 16 | 15 | 160 | 35 | 11.5 | 16 | 1.5 | 3.6 | GXM N150005S-GF | 1 | ||||
| GNDIS R/L1620-T1546 | 16 | 15 | 160 | 40 | 14.5 | 20 | 1.5 | 4.6 | 1 | |||||
| GNDIS R/L2025-T1566 | BFTX0511N | 5.0 | LT20 |
- 20 19 180 40 19.0 25 1.5 6.6 1
| GNDIS R/L1214-T2026 | 12 | 11 | 150 | 30 | 9.0 | 14 | 2.0 | 2.6 | 1 | ||||
| GNDIS R/L1214-T2036 | 12 | 11 | 150 | 30 | 10.0 | 14 | 2.0 | 3.6 | 1 | BFTX0409N | 3.4 | LT15 | |
| GNDIS R/L1616-T2036 | 16 | 15 | 160 | 35 | 11.5 | 16 | 2.0 | 3.6 | GXM N2002S-□□ 1 | ||||
| GNDIS R/L1620-T2046 | 16 | 15 | 160 | 40 | 14.5 | 20 | 2.0 | 4.6 | 1 | ||||
| BFTX0511N | 5.0 | LT20 | |||||||||||
| GNDIS R/L2025-T2066 | 20 | 19 | 180 | 40 | 19.0 | 25 | 2.0 | 6.6 | 1 | ||||
| GNDIS R/L1214-T3026 | 12 | 11 | 150 | 30 | 9.0 | 14 | 3.0 | 2.6 | 1 | ||||
| GNDIS R/L1214-T3036 | 12 | 11 | 150 | 30 | 10.0 | 14 | 3.0 | 3.6 | 1 | BFTX0409N | 3.4 | LT15 | |
| GNDIS R/L1616-T3036 | 16 | 15 | 160 | 35 | 11.5 | 16 | 3.0 | 3.6 | GXM N3002S-□□ 1 | ||||
| GNDIS R/L1620-T3046 | 16 | 15 | 160 | 40 | 14.5 | 20 | 3.0 | 4.6 | 1 | ||||
| GNDIS R/L2025-T3066 | BFTX0511N | 5.0 | LT20 |
- 20 19 180 40 19.0 25 3.0 6.6 1
Combine the insert with a holder such that the width of cut (CW) matches. Only GXM inserts can be used.
Identification Code
GND IS R 12 14 - T 15 26
| Series | Application | Feed | Shank | Min. | For | Width | Maximum Groove | |||
| Symbol: | Direction | Dia. | Bore | Internal | of Cut x | Depth x 10 | ||||
| Internal | (mm) | Diameter | Diameter | 10 | (mm) | |||||
| Diameter | (mm) | Machining | (mm) |
Machining
