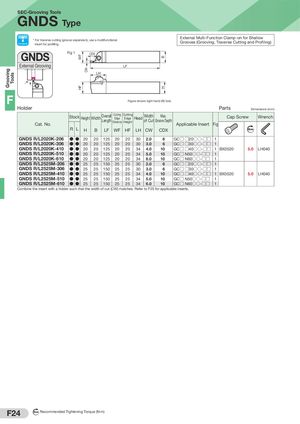

Общий каталог Sumitomo 2019 - 2020 - страница 338
Навигация
Каталог Sumitomo запасные части
Каталог Sumitomo сплавы и режимы
Техническая информация Sumitomo
Каталог Sumitomo пластины с алмазными вставками Sumidia
Каталог Sumitomo специальные торцевые фрезы
Общий каталог Sumitomo 2018 - 2019
GNDS SEC-Grooving Tools
External Multi-Function Clamp-on for Shallow * For traverse cutting (groove expansion), use a multifunctional Grooves (Grooving, Traverse Cutting and Profiling) External insert for profiling.
GNDS Fig 1 CDX
External Grooving LF LH
F
Figure shows right hand (R) tool.
Holder Parts
Dimensions (mm)
Stock Height Width Overall Cutting Cutting Max. Cap Screw Wrench
Edge Edge Head Width Length of Cut Groove Depth
Cat. No. Distance Height Applicable Insert Fig
| R L | H | B | LF WF HF LH CW | CDX | N m | |||||||
| GNDS R/L2020K-206 | ● ● | 20 | 20 | 125 | 20 | 20 | 30 | 2.0 | 6 | GC□ □20○○-□□ | 1 | |
| GNDS R/L2020K-306 | ● ● | 20 | 20 | 125 | 20 | 20 | 30 | 3.0 | 6 | GC□ □30○○-□□ | 1 | |
| GNDS R/L2020K-410 | ● ● | 20 | 20 | 125 | 20 | 20 | 34 | 4.0 | 10 | GC□ □40○○-□□ | 1 | LH040 BX0520 5.0 |
| GNDS R/L2020K-510 | ● ● | 20 | 20 | 125 | 20 | 20 | 34 | 5.0 | 10 | GC□ N50○○-□□ | 1 | |
| GNDS R/L2020K-610 | ● ● | 20 | 20 | 125 | 20 | 20 | 34 | 6.0 | 10 | GC□ N60○○-□□ | 1 | |
| GNDS R/L2525M-206 | ● ● | 25 | 25 | 150 | 25 | 25 | 30 | 2.0 | 6 | GC□ □20○○-□□ | 1 | |
| GNDS R/L2525M-306 | ● ● | 25 | 25 | 150 | 25 | 25 | 30 | 3.0 | 6 | GC□ □30○○-□□ | 1 | |
| GNDS R/L2525M-410 | ● ● | 25 | 25 | 150 | 25 | 25 | 34 | 4.0 | 10 | GC□ □40○○-□□ | 1 | LH040 BX0520 5.0 |
| GNDS R/L2525M-510 | ● ● | 25 | 25 | 150 | 25 | 25 | 34 | 5.0 | 10 | GC□ N50○○-□□ | 1 | |
| GNDS R/L2525M-610 | ● ● | 25 | 25 | 150 | 25 | 25 | 34 | 6.0 | 10 | GC□ N60○○-□□ | 1 |
Combine the insert with a holder such that the width of cut (CW) matches. Refer to F25 for applicable inserts.
