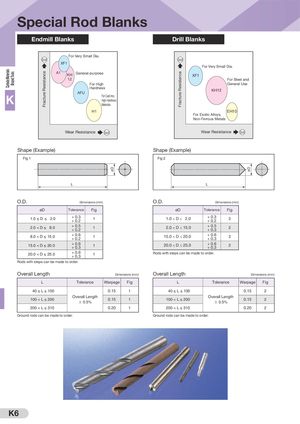

Carbide Materials Brazed Tools Fracture Resistance øD Fracture Resistance øD Special Rod Blanks Endmill Blanks Drill Blanks For Very Small Dia. Good Good XF1 For Very Small Dia. A1 KH General-purpose XF1 12 For Steel and For High General Use HardnessAFU KH12 K For Cast Iron,High-Hardness Materials H1 EH10 For Exotic Alloys, Non-Ferrous Metals Wear Resistance Good Wear Resistance Good Shape (Example) Shape (Example) Fig 1 Fig 2 L L O.D.  Dimensions (mm) O.D.  Dimensions (mm) øD Tolerance Fig øD Tolerance Fig 1.0 ≤ D ≤ 2.0 + 0.3+ 0.2 1  1.0 ≤ D ≤   2.0 + 0.3+ 0.2 2 2.0 < D ≤ 8.0 + 0.5+ 0.2 1  2.0 < D ≤ 15.0 + 0.5+ 0.3 2 8.0 < D ≤ 15.0 + 0.6+ 0.2 1 15.0 < D ≤ 20.0 + 0.6+ 0.3 2 15.0 < D ≤ 20.0 + 0.6+ 0.3 1 20.0 < D ≤ 25.0 + 0.6+ 0.3 2 20.0 < D ≤ 25.0 + 0.6+ 0.3 1 Rods with steps can be made to order. Rods with steps can be made to order. Overall Length  Dimensions (mm) Overall Length  Dimensions (mm) L Tolerance Warpage Fig L Tolerance Warpage Fig 40 ≤ L ≤ 100 0.15 1   40 ≤ L ≤ 100 0.15 2 100 < L ≤ 200 Overall Length± 0.5% 0.15 1 100 < L ≤ 200 Overall Length± 0.5% 0.15 2 200 < L ≤ 310 0.20 1 200 < L ≤ 310 0.20 2 Ground rods can be made to order. Ground rods can be made to order. K6
