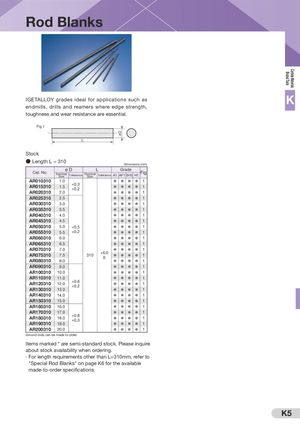

Brazed Tools Carbide Materials øD Rod Blanks IGETALLOY grades ideal for applications such as K endmills, drills and reamers where edge strength, toughness and wear resistance are essential. Fig 1 L Stock ● Length L = 310  Dimensions (mm) Cat. No. øDNominalSizeToleranceLNominalSizeToleranceA1GradeAF1 EH10H1Fig AR010310 1.0 ＊ ＊ ＊ ＊ 1 AR015310 1.5 +0.3+0.2 ＊ ＊ ＊ ＊ 1 AR020310 2.0 ＊ ＊ ＊ ＊ 1 AR025310 2.5 ＊ ＊ ＊ ＊ 1 AR030310 3.0 ＊ ＊ ＊ ＊ 1 AR035310 3.5 ＊ ＊ ＊ ＊ 1 AR040310 4.0 ＊ ＊ ＊ ＊ 1 AR045310 4.5 ＊ ＊ ＊ ＊ 1 AR050310 5.0 +0.5 ＊ ＊ ＊ ＊ 1 AR055310 5.5 +0.2 ＊ ＊ ＊ ＊ 1 AR060310 6.0 ＊ ＊ ＊ ＊ 1 AR065310 6.5 ＊ ＊ ＊ ＊ 1 AR070310 7.0 ＊ ＊ ＊ ＊ 1 AR075310 7.5 310 +6.00 ＊ ＊ ＊ ＊ 1 AR080310 8.0 ＊ ＊ ＊ ＊ 1 AR090310 9.0 ＊ ＊ ＊ ＊ 1 AR100310 10.0 ＊ ＊ ＊ ＊ 1 AR110310 11.0 ＊ ＊ ＊ ＊ 1 AR120310 12.0 +0.6+0.2 ＊ ＊ ＊ ＊ 1 AR130310 13.0 ＊ ＊ ＊ ＊ 1 AR140310 14.0 ＊ ＊ ＊ ＊ 1 AR150310 15.0 ＊ ＊ ＊ ＊ 1 AR160310 16.0 ＊ ＊ ＊ ＊ 1 AR170310 17.0 ＊ ＊ ＊ ＊ 1 AR180310 18.0 +0.8+0.3 ＊ ＊ ＊ ＊ 1 AR190310 19.0 ＊ ＊ ＊ ＊ 1 AR200310 20.0 ＊ ＊ ＊ ＊ 1 Ground rods can be made to order. Items marked * are semi-standard stock. Please inquire about stock availability when ordering. · For length requirements other than L=310mm, refer to "Special Rod Blanks" on page K6 for the available made-to-order specifications. K5
