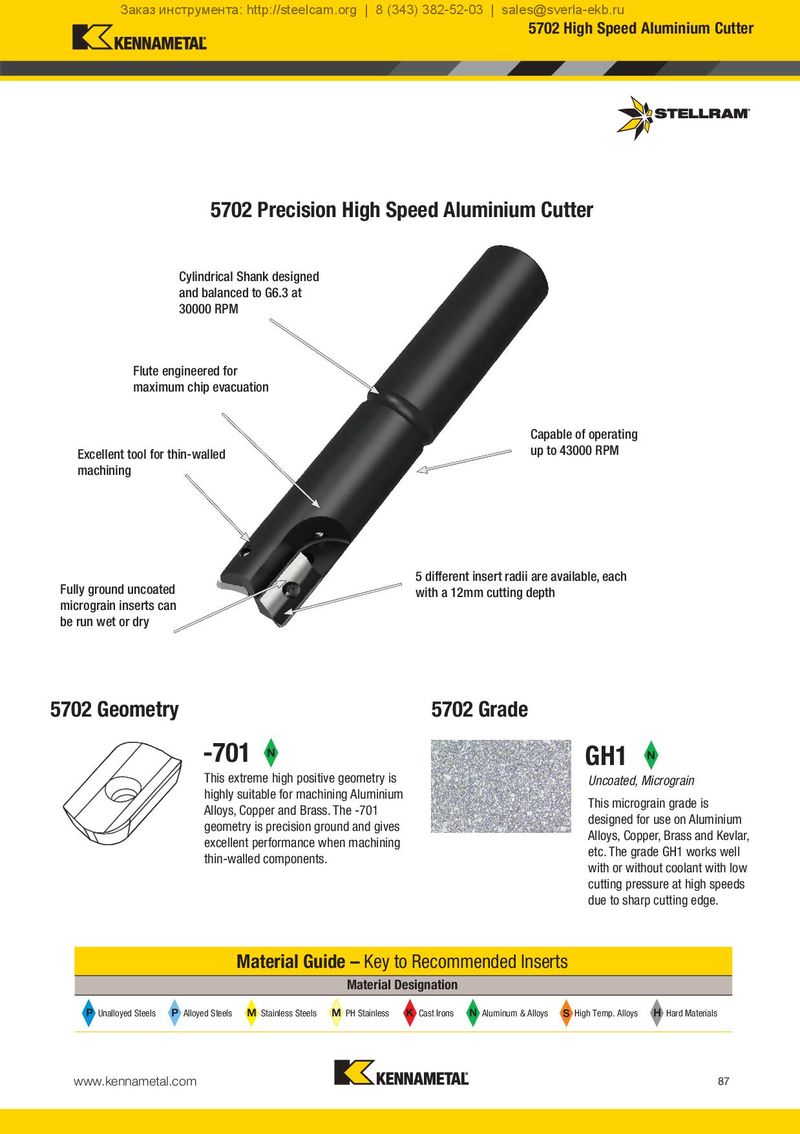

Заказ инструмента: http://steelcam.org | 8 (343) 382-52-03 | sales@sverla-ekb.ru 5702 High Speed Aluminium Cutter 5702 Precision High Speed Aluminium Cutter Cylindrical Shank designed and balanced to G6.3 at 30000 RPM Flute engineered for maximum chip evacuation Capable of operating Excellent tool for thin-walled up to 43000 RPM machining 5 different insert radii are available, each Fully ground uncoated with a 12mm cutting depth micrograin inserts can be run wet or dry 5702 Geometry 5702 Grade -701 N GH1 N This extreme high positive geometry is Uncoated, Micrograin highly suitable for machining Aluminium This micrograin grade is Alloys, Copper and Brass. The -701 designed for use on Aluminium geometry is precision ground and gives Alloys, Copper, Brass and Kevlar, excellent performance when machining etc. The grade GH1 works well thin-walled components. with or without coolant with low cutting pressure at high speeds due to sharp cutting edge. Material Guide – Key to Recommended Inserts Material Designation P Unalloyed Steels P Alloyed Steels M Stainless Steels M PH Stainless K Cast Irons N Aluminum & Alloys S High Temp. Alloys H Hard Materials www.kennametal.com 87
