Каталог Stellram высокопроизводительные фрезерные системы - страница 88

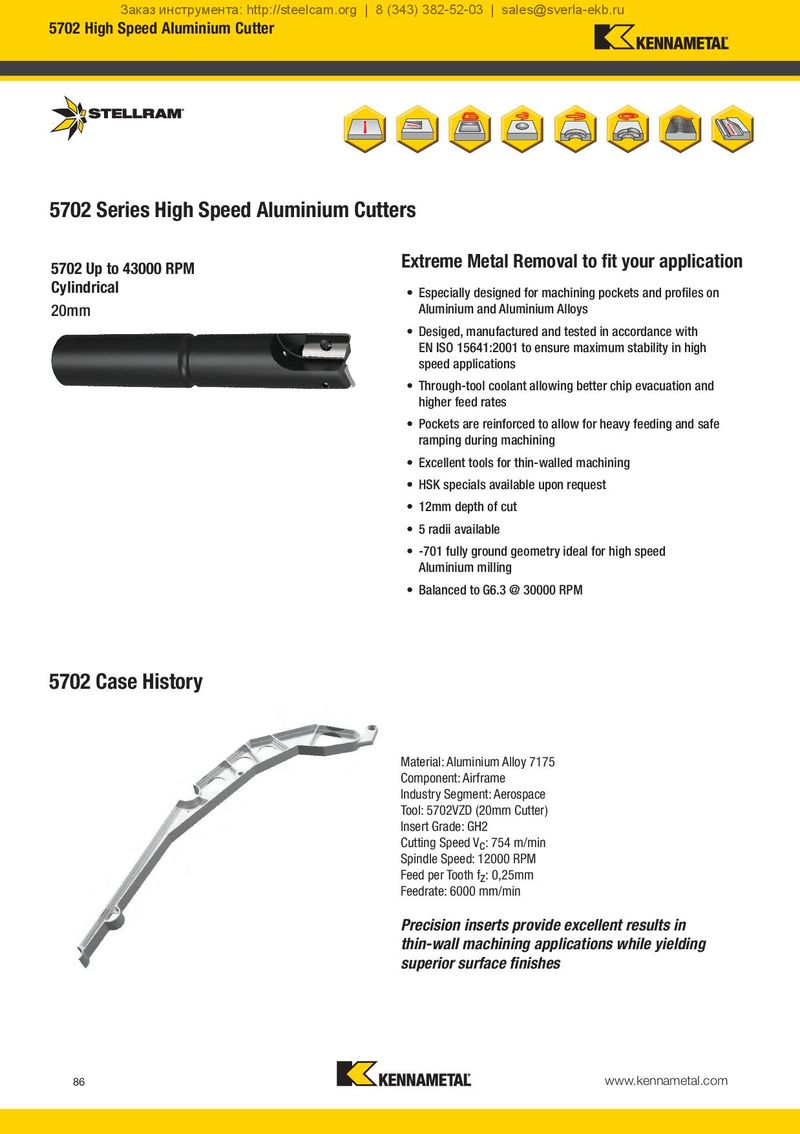

Заказ инструмента: http://steelcam.org | 8 (343) 382-52-03 | sales@sverla-ekb.ru 5702 High Speed Aluminium Cutter 5702 Series High Speed Aluminium Cutters 5702 Up to 43000 RPM Extreme Metal Removal to fit your application Cylindrical • Especially designed for machining pockets and profiles on 20mm Aluminium and Aluminium Alloys • Desiged, manufactured and tested in accordance with EN ISO 15641:2001 to ensure maximum stability in high speed applications • Through-tool coolant allowing better chip evacuation and higher feed rates • Pockets are reinforced to allow for heavy feeding and safe ramping during machining • Excellent tools for thin-walled machining • HSK specials available upon request • 12mm depth of cut • 5 radii available • -701 fully ground geometry ideal for high speed Aluminium milling • Balanced to G6.3 @ 30000 RPM 5702 Case History Material: Aluminium Alloy 7175 Component: Airframe Industry Segment: Aerospace Tool: 5702VZD (20mm Cutter) Insert Grade: GH2 Cutting Speed Vc: 754 m/min Spindle Speed: 12000 RPM Feed per Tooth fz: 0,25mm Feedrate: 6000 mm/min Precision inserts provide excellent results in thin-wall machining applications while yielding superior surface finishes 86 www.kennametal.com
