Каталог Stellram высокопроизводительные фрезерные системы - страница 74

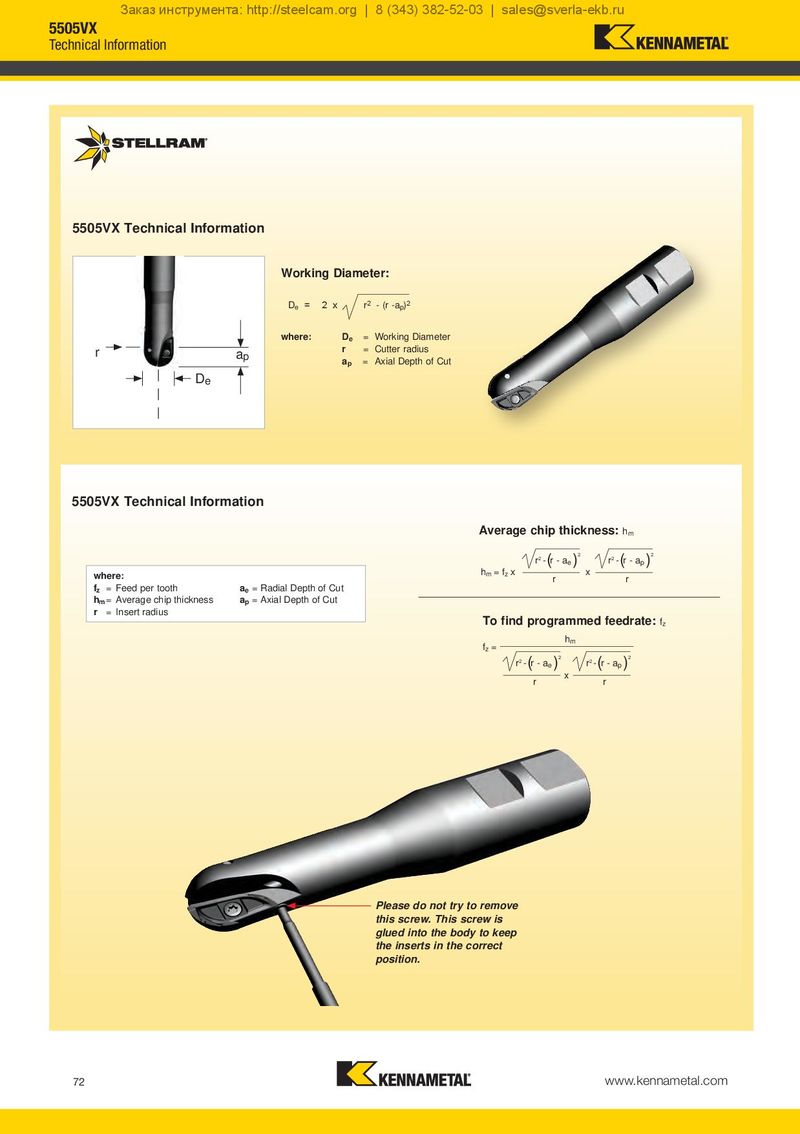

Заказ инструмента: http://steelcam.org | 8 (343) 382-52-03 | sales@sverla-ekb.ru 5505VX Technical Information 5505VX Technical Information Working Diameter: De = 2 x r2 - (r -ap)2 where: De = Working Diameter r = Cutter radius r ap ap = Axial Depth of Cut De 5505VX Technical Information Average chip thickness: hm ( ) ( ) 2 2 r2 - r - ae r2 - r - ap where: hm = fz x x r r fz = Feed per tooth ae = Radial Depth of Cut hm = Average chip thickness ap = Axial Depth of Cut r = Insert radius To find programmed feedrate: fz hm fz = ( ) ( ) 2 2 r2 - r - ae r2 - r - ap x r r Please do not try to remove this screw. This screw is glued into the body to keep the inserts in the correct position. 72 www.kennametal.com KMST-009_ExpFocusBroMetricUK_48-IBC.indd 72 4/25/14 4:42 PM
