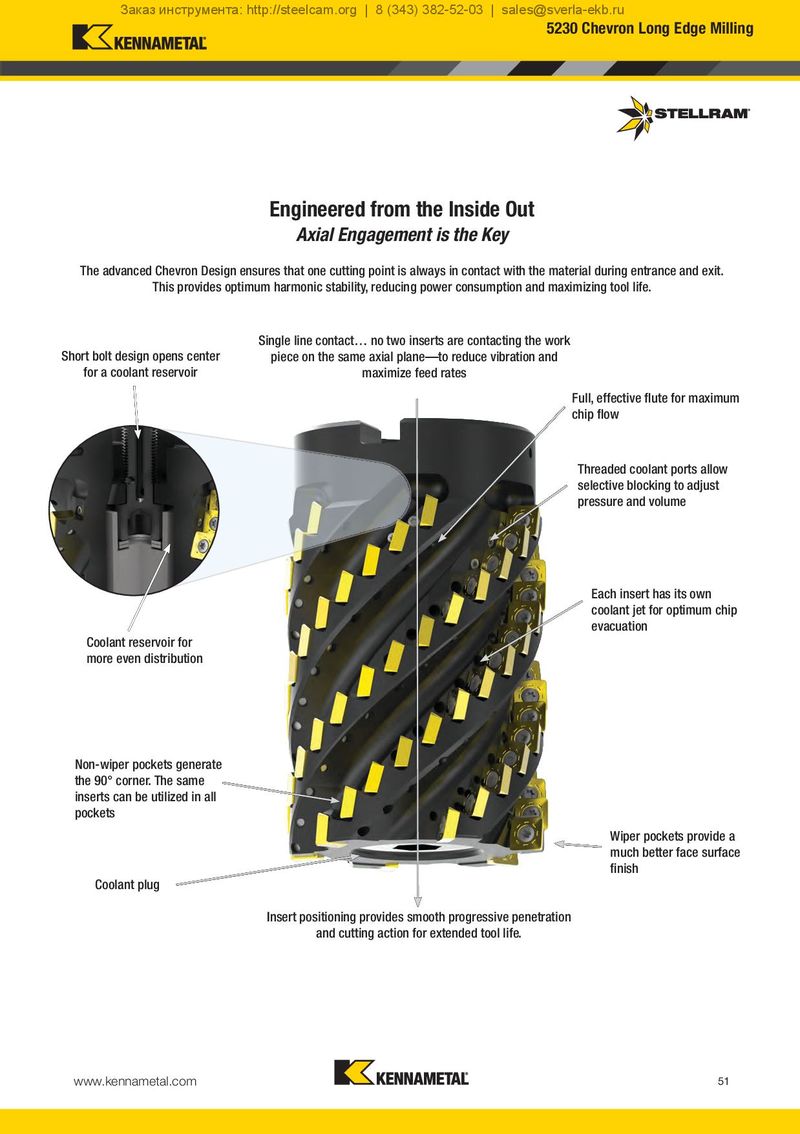

Заказ инструмента: http://steelcam.org | 8 (343) 382-52-03 | sales@sverla-ekb.ru 5230 Chevron Long Edge Milling Engineered from the Inside Out Axial Engagement is the Key The advanced Chevron Design ensures that one cutting point is always in contact with the material during entrance and exit. This provides optimum harmonic stability, reducing power consumption and maximizing tool life. Single line contact… no two inserts are contacting the work Short bolt design opens center piece on the same axial plane—to reduce vibration and for a coolant reservoir maximize feed rates Full, effective flute for maximum chip flow Threaded coolant ports allow selective blocking to adjust pressure and volume Each insert has its own coolant jet for optimum chip evacuation Coolant reservoir for more even distribution Non-wiper pockets generate the 90° corner. The same inserts can be utilized in all pockets Wiper pockets provide a much better face surface finish Coolant plug Insert positioning provides smooth progressive penetration and cutting action for extended tool life. www.kennametal.com 51
