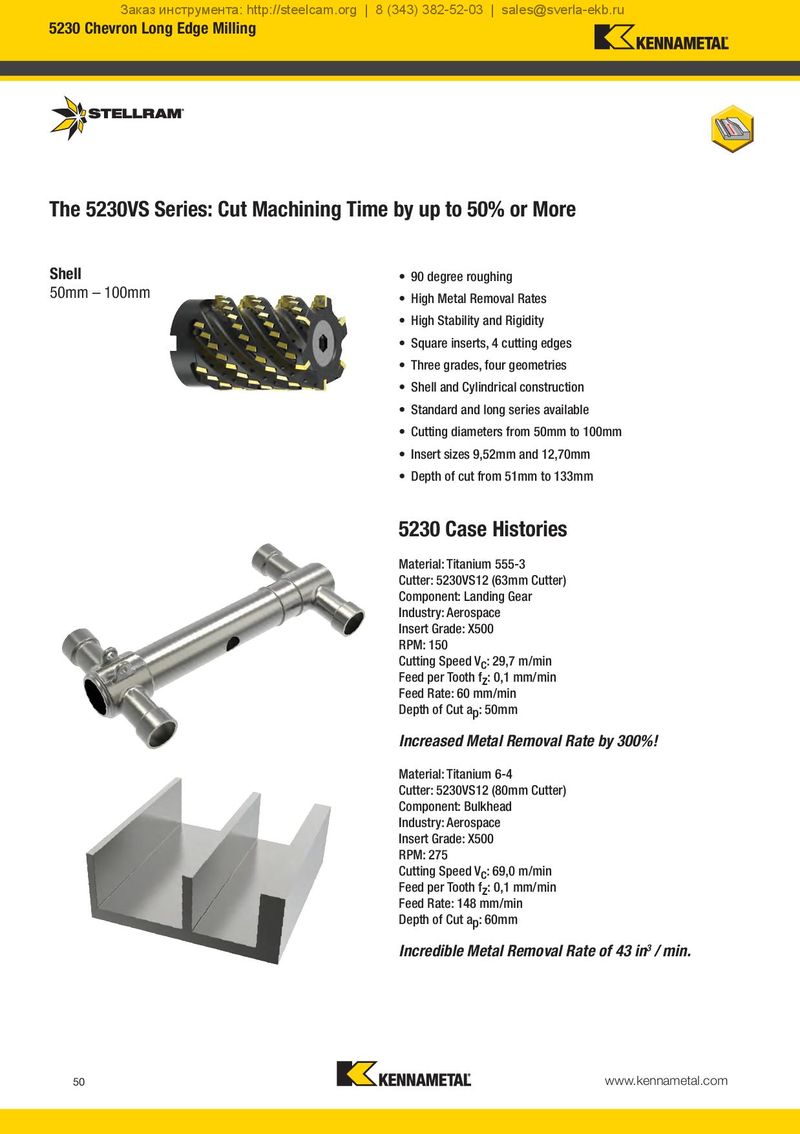

Заказ инструмента: http://steelcam.org | 8 (343) 382-52-03 | sales@sverla-ekb.ru 5230 Chevron Long Edge Milling The 5230VS Series: Cut Machining Time by up to 50% or More Shell • 90 degree roughing 50mm – 100mm • High Metal Removal Rates • High Stability and Rigidity • Square inserts, 4 cutting edges • Three grades, four geometries • Shell and Cylindrical construction • Standard and long series available • Cutting diameters from 50mm to 100mm • Insert sizes 9,52mm and 12,70mm • Depth of cut from 51mm to 133mm 5230 Case Histories Material: Titanium 555-3 Cutter: 5230VS12 (63mm Cutter) Component: Landing Gear Industry: Aerospace Insert Grade: X500 RPM: 150 Cutting Speed Vc: 29,7 m/min Feed per Tooth fz: 0,1 mm/min Feed Rate: 60 mm/min Depth of Cut ap: 50mm Increased Metal Removal Rate by 300%! Material: Titanium 6-4 Cutter: 5230VS12 (80mm Cutter) Component: Bulkhead Industry: Aerospace Insert Grade: X500 RPM: 275 Cutting Speed Vc: 69,0 m/min Feed per Tooth fz: 0,1 mm/min Feed Rate: 148 mm/min Depth of Cut ap: 60mm Incredible Metal Removal Rate of 43 in3 / min. 50 www.kennametal.com
