8 (343) 382-52-03 | sales@sverla-ekb.ru HMN

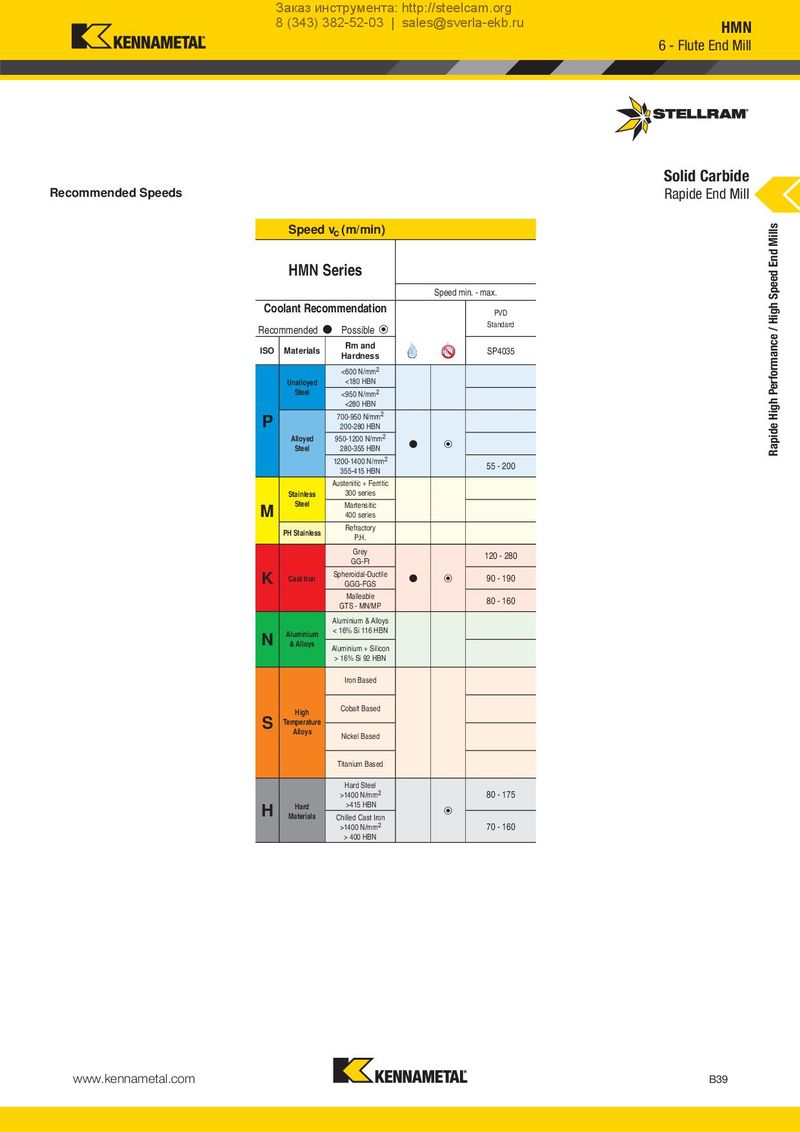

Solid Carbide
Recommended Speeds Rapide End Mill
Speed v (m/min)
c
HMN Series
Speed min. - max.
Coolant Recommendation
PVD
| Recommended | Standard Possible | |
| SP4035 Rm and | ||
| ISO | Materials | |
| Hardness | ||
| <600 N/mm 2 | ||
| Unalloyed | <180 HBN | |
| Steel | <950 N/mm 2 | |
| <280 HBN | ||
| P | 700-950 N/mm2 | |
| 200-280 HBN | ||
| Alloyed | 950-1200 N/mm2 |
| Steel | 280-355 HBN |
| 55 - 200 1200-1400 N/mm2 | |
| 355-415 HBN | |
| Austenitic + Ferritic | |
| Stainless | 300 series |
| M Steel | Martensitic |
400 series PH Stainless Refractory P.H. Grey 120 - 280
GG-Ft
K Cast Iron Spheroidal-Ductile 90 - 190
GGG-FGS Malleable 80 - 160 GTS - MN/MP Aluminium & Alloys
Aluminium < 16% Si 116 HBN N & Alloys Aluminium + Silicon > 16% Si 92 HBN Iron Based High Cobalt Based S Temperature Alloys Nickel Based
Titanium Based Hard Steel >1400 N/mm 2 80 - 175
H Hard >415 HBN
Materials Chilled Cast Iron >1400 N/mm 2 70 - 160 > 400 HBN
