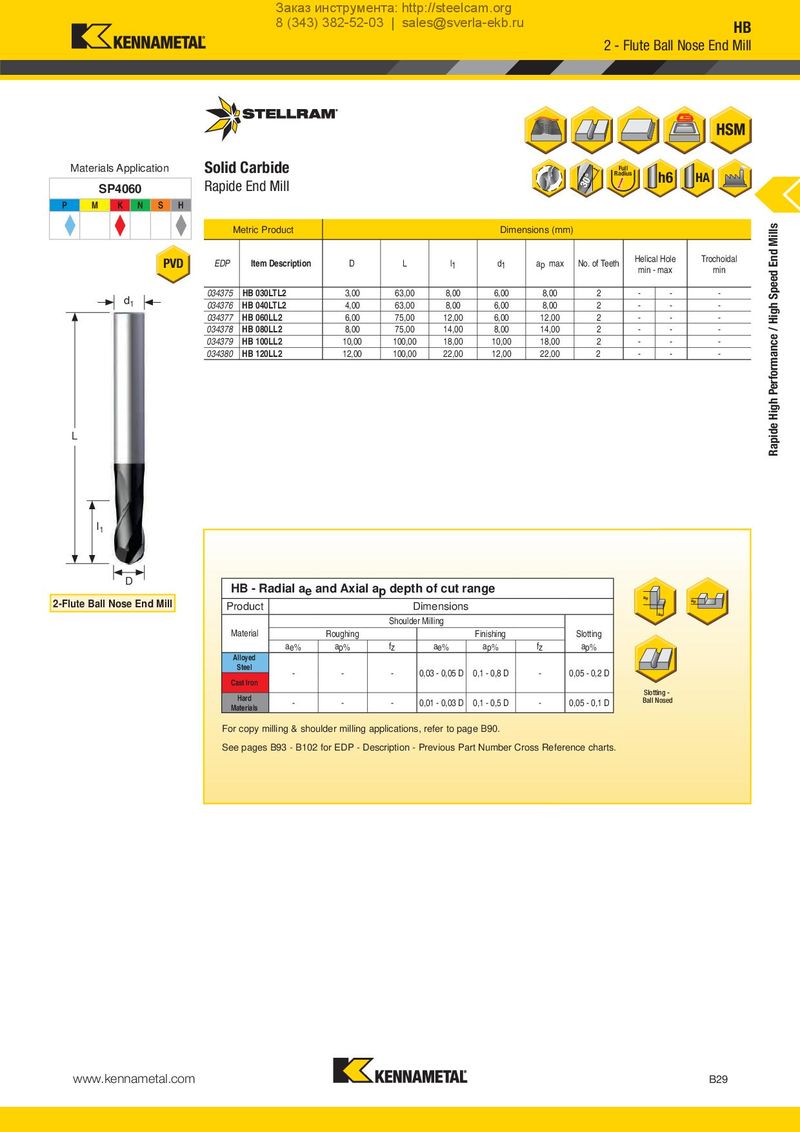

Solid Carbide

Materials Application Full h6

Radius HA

Rapide End Mill

SP4060

P M K N S H

Metric Product Dimensions (mm)

PVD EDP Item Description D L l1 d1 ap max No. of Teeth Helical Hole Trochoidal

min - max min

034375HB 030LTL23,0063,008,006,008,002---
d034376HB 040LTL24,0063,008,006,008,002---

1

034377HB 060LL26,0075,0012,006,0012,002---
034378HB 080LL28,0075,0014,008,0014,002---
034379HB 100LL210,00100,0018,0010,0018,002---
034380HB 120LL212,00100,0022,0012,0022,002---

L

I

1

D

HB - Radial ae and Axial ap depth of cut range

ap

2-Flute Ball Nose End Mill Product Dimensions ap

Shoulder Milling ae

MaterialRoughingFinishingSlotting
ae%ap%fzae%ap%fzap%

Alloyed

Steel - - - 0,03 - 0,05 D 0,1 - 0,8 D - 0,05 - 0,2 D

Cast Iron Hard Slotting -

- - - 0,01 - 0,03 D 0,1 - 0,5 D - 0,05 - 0,1 D Ball Nosed

Materials For copy milling & shoulder milling applications, refer to page B90. See pages B93 - B102 for EDP - Description - Previous Part Number Cross Reference charts.
