Solid Carbide

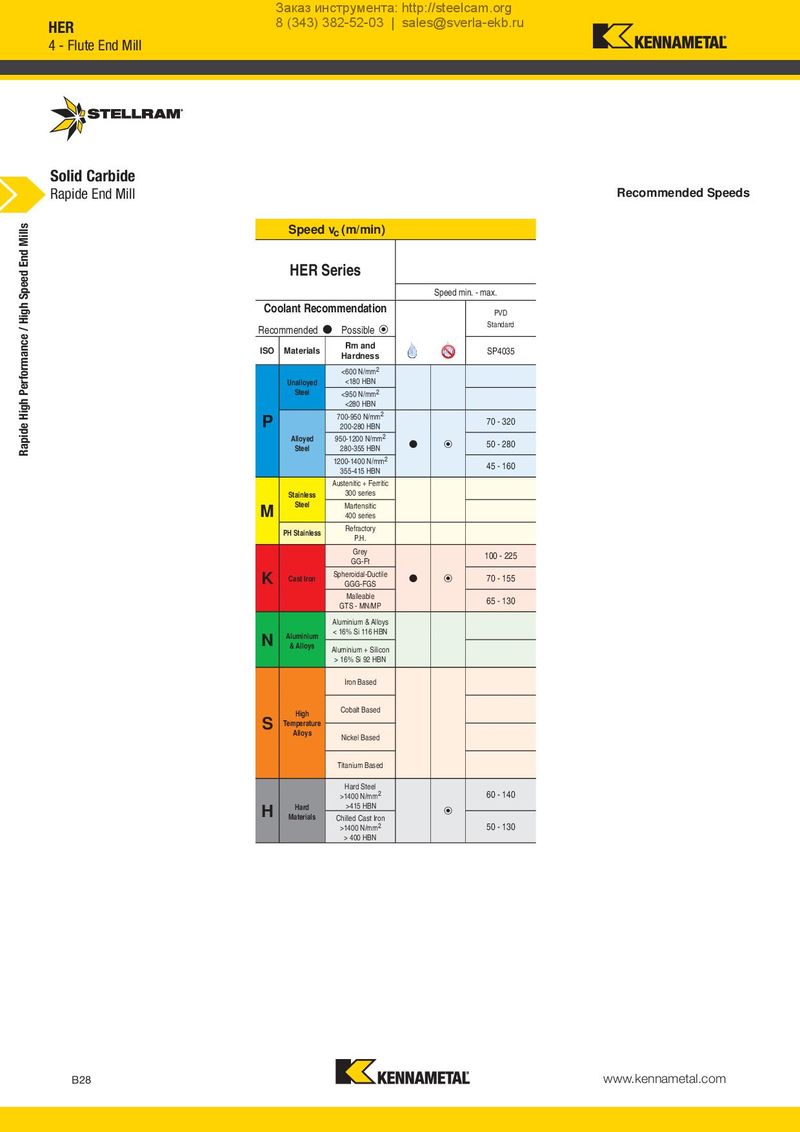

Rapide End Mill Recommended Speeds
Speed v (m/min)
c
HER Series
Speed min. - max.
Coolant Recommendation
PVD
Recommended Possible Standard
Rm and SP4035 ISO Materials Hardness <600 N/mm 2
Unalloyed <180 HBN Steel <950 N/mm 2 <280 HBN
| P | 700-950 N/mm2 | 70 - 320 | |
| 200-280 HBN | |||
| Alloyed | 950-1200 N/mm2 | 50 - 280 | |
| Steel | 280-355 HBN | | |
| 1200-1400 N/mm2 | 45 - 160 | ||
| 355-415 HBN | |||
| Austenitic + Ferritic | |||
| Stainless | 300 series | ||
| M | Steel | Martensitic |
400 series PH Stainless Refractory P.H. Grey 100 - 225
GG-Ft
K Cast Iron Spheroidal-Ductile 70 - 155
GGG-FGS Malleable 65 - 130 GTS - MN/MP Aluminium & Alloys
Aluminium < 16% Si 116 HBN
N
& Alloys Aluminium + Silicon > 16% Si 92 HBN Iron Based High Cobalt Based S Temperature Alloys Nickel Based
Titanium Based Hard Steel >1400 N/mm 2 60 - 140
H Hard >415 HBN
Materials Chilled Cast Iron >1400 N/mm 2 50 - 130 > 400 HBN
