Каталог Stellram токарный инструмент - страница 241

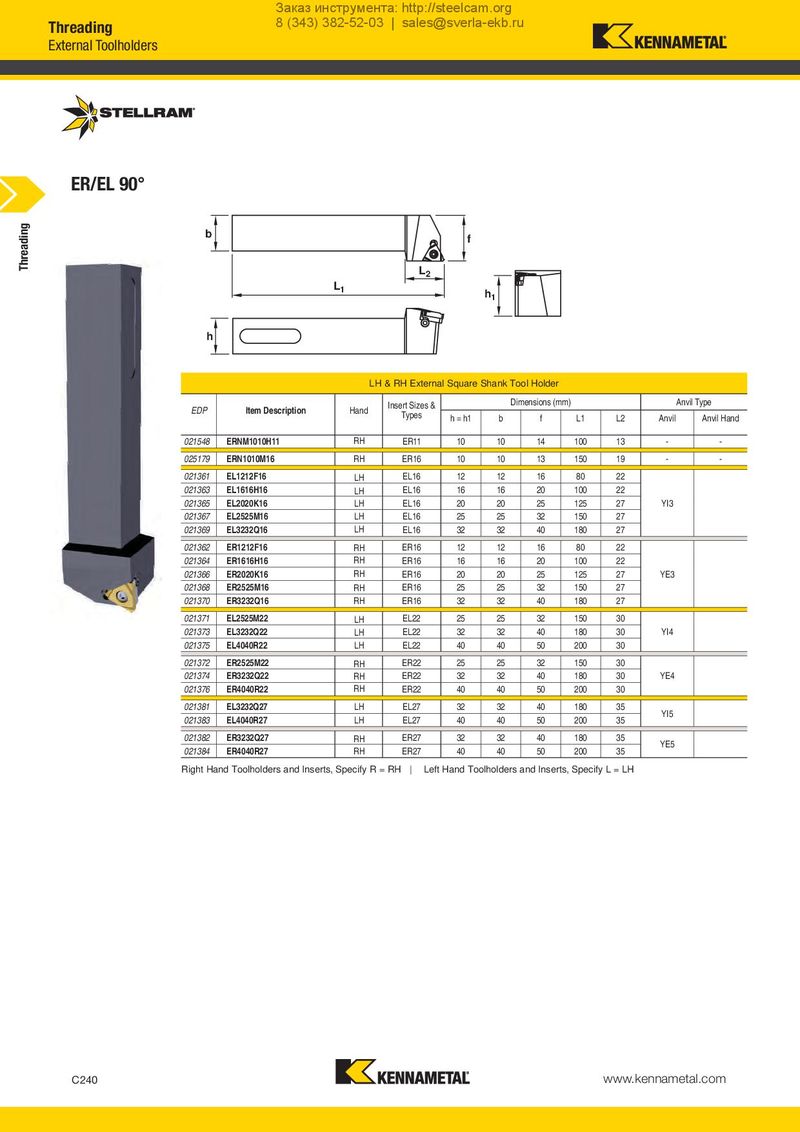

Заказ инструмента: http://steelcam.org Threading 8 (343) 382-52-03 | sales@sverla-ekb.ru External Toolholders ER/EL 90° Threading b f L2 L1 h1 h LH & RH External Square Shank Tool Holder EDP Item Description Hand Insert Sizes & Dimensions (mm) Anvil Type Types h = h1 b f L1 L2 Anvil Anvil Hand 021548 ERNM1010H11 RH ER11 10 10 14 100 13 - - 025179 ERN1010M16 RH ER16 10 10 13 150 19 - - 021361 EL1212F16 LH EL16 12 12 16 80 22 021363 EL1616H16 LH EL16 16 16 20 100 22 021365 EL2020K16 LH EL16 20 20 25 125 27 YI3 021367 EL2525M16 LH EL16 25 25 32 150 27 021369 EL3232Q16 LH EL16 32 32 40 180 27 021362 ER1212F16 RH ER16 12 12 16 80 22 021364 ER1616H16 RH ER16 16 16 20 100 22 021366 ER2020K16 RH ER16 20 20 25 125 27 YE3 021368 ER2525M16 RH ER16 25 25 32 150 27 021370 ER3232Q16 RH ER16 32 32 40 180 27 021371 EL2525M22 LH EL22 25 25 32 150 30 021373 EL3232Q22 LH EL22 32 32 40 180 30 YI4 021375 EL4040R22 LH EL22 40 40 50 200 30 021372 ER2525M22 RH ER22 25 25 32 150 30 021374 ER3232Q22 RH ER22 32 32 40 180 30 YE4 021376 ER4040R22 RH ER22 40 40 50 200 30 021381 EL3232Q27 LH EL27 32 32 40 180 35 YI5 021383 EL4040R27 LH EL27 40 40 50 200 35 021382 ER3232Q27 RH ER27 32 32 40 180 35 YE5 021384 ER4040R27 RH ER27 40 40 50 200 35 Right Hand Toolholders and Inserts, Specify R = RH | Left Hand Toolholders and Inserts, Specify L = LH C240 www.kennametal.com
