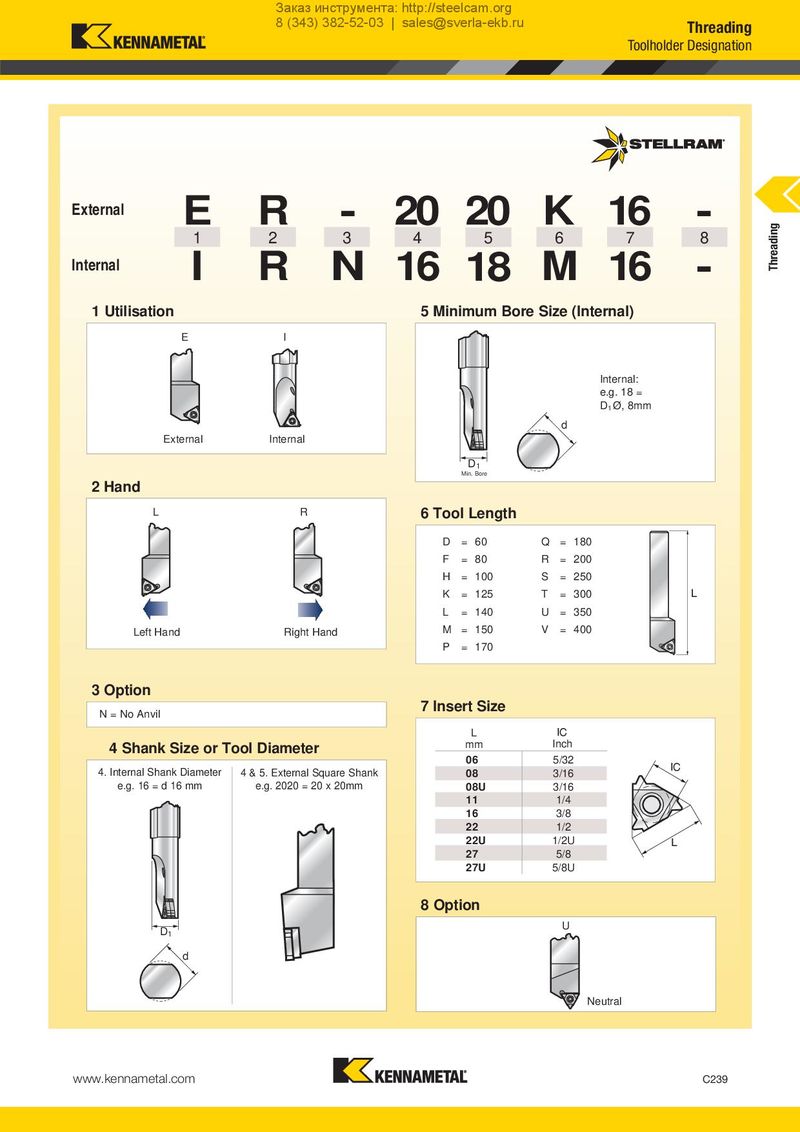

Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru Threading Toolholder Designation External E R - 20 20 K 16 - 1 2 3 4 5 6 7 8 Threading Internal I R N 16 18 M 16 - 1 Utilisation 5 Minimum Bore Size (Internal) E I Internal: e.g. 18 = D1 Ø, 8mm d External Internal D1 Min. Bore 2 Hand L R 6 Tool Length D = 60 Q = 180 F = 80 R = 200 H = 100 S = 250 K = 125 T = 300 L L = 140 U = 350 Left Hand Right Hand M = 150 V = 400 P = 170 3 Option N = No Anvil 7 Insert Size L IC 4 Shank Size or Tool Diameter mm Inch 06 5/32 IC 4. Internal Shank Diameter 4 & 5. External Square Shank 08 3/16 e.g. 16 = d 16 mm e.g. 2020 = 20 x 20mm 08U 3/16 11 1/4 16 3/8 22 1/2 22U 1/2U L 27 5/8 27U 5/8U 8 Option D1 U d Neutral www.kennametal.com C239
