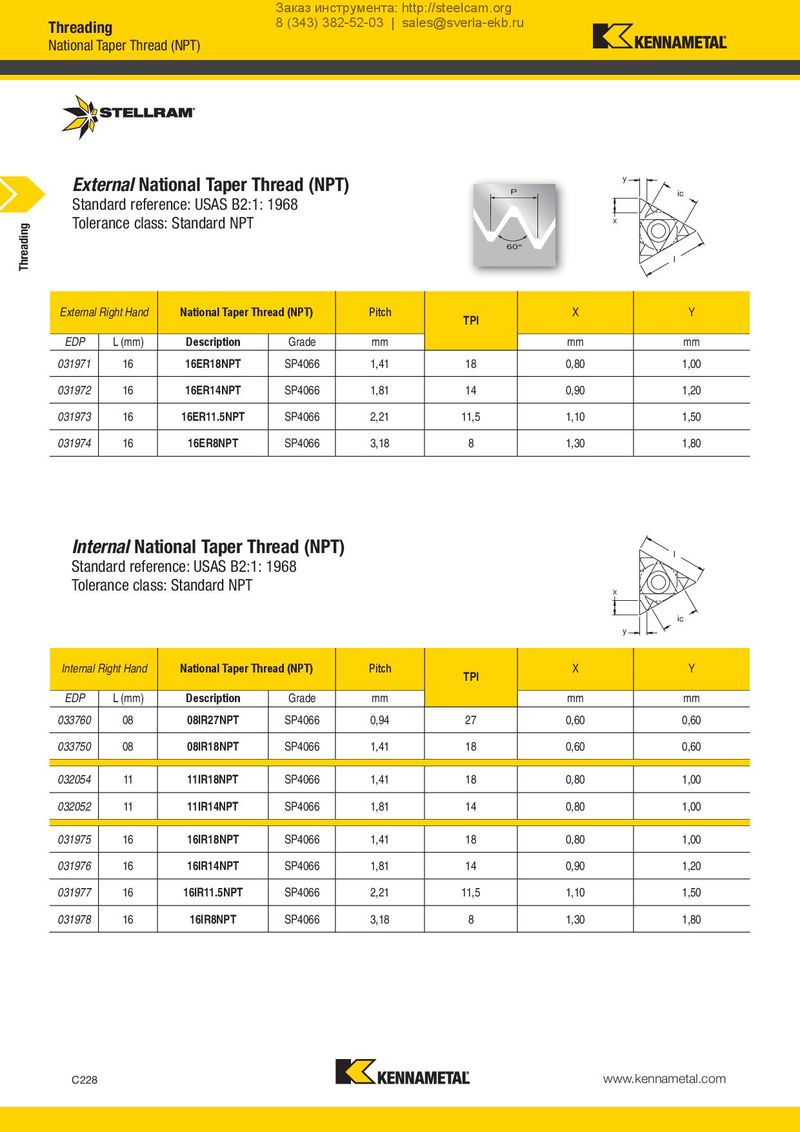

Заказ инструмента: http://steelcam.org Threading 8 (343) 382-52-03 | sales@sverla-ekb.ru National Taper Thread (NPT) External National Taper Thread (NPT) y P ic Standard reference: USAS B2:1: 1968 Threading Tolerance class: Standard NPT x 60° l External Right Hand National Taper Thread (NPT) Pitch TPI X Y EDP L (mm) Description Grade mm mm mm 031971 16 16ER18NPT SP4066 1,41 18 0,80 1,00 031972 16 16ER14NPT SP4066 1,81 14 0,90 1,20 031973 16 16ER11.5NPT SP4066 2,21 11,5 1,10 1,50 031974 16 16ER8NPT SP4066 3,18 8 1,30 1,80 Internal National Taper Thread (NPT) l Standard reference: USAS B2:1: 1968 Tolerance class: Standard NPT x ic y Internal Right Hand National Taper Thread (NPT) Pitch TPI X Y EDP L (mm) Description Grade mm mm mm 033760 08 08IR27NPT SP4066 0,94 27 0,60 0,60 033750 08 08IR18NPT SP4066 1,41 18 0,60 0,60 032054 11 11IR18NPT SP4066 1,41 18 0,80 1,00 032052 11 11IR14NPT SP4066 1,81 14 0,80 1,00 031975 16 16IR18NPT SP4066 1,41 18 0,80 1,00 031976 16 16IR14NPT SP4066 1,81 14 0,90 1,20 031977 16 16IR11.5NPT SP4066 2,21 11,5 1,10 1,50 031978 16 16IR8NPT SP4066 3,18 8 1,30 1,80 C228 www.kennametal.com
