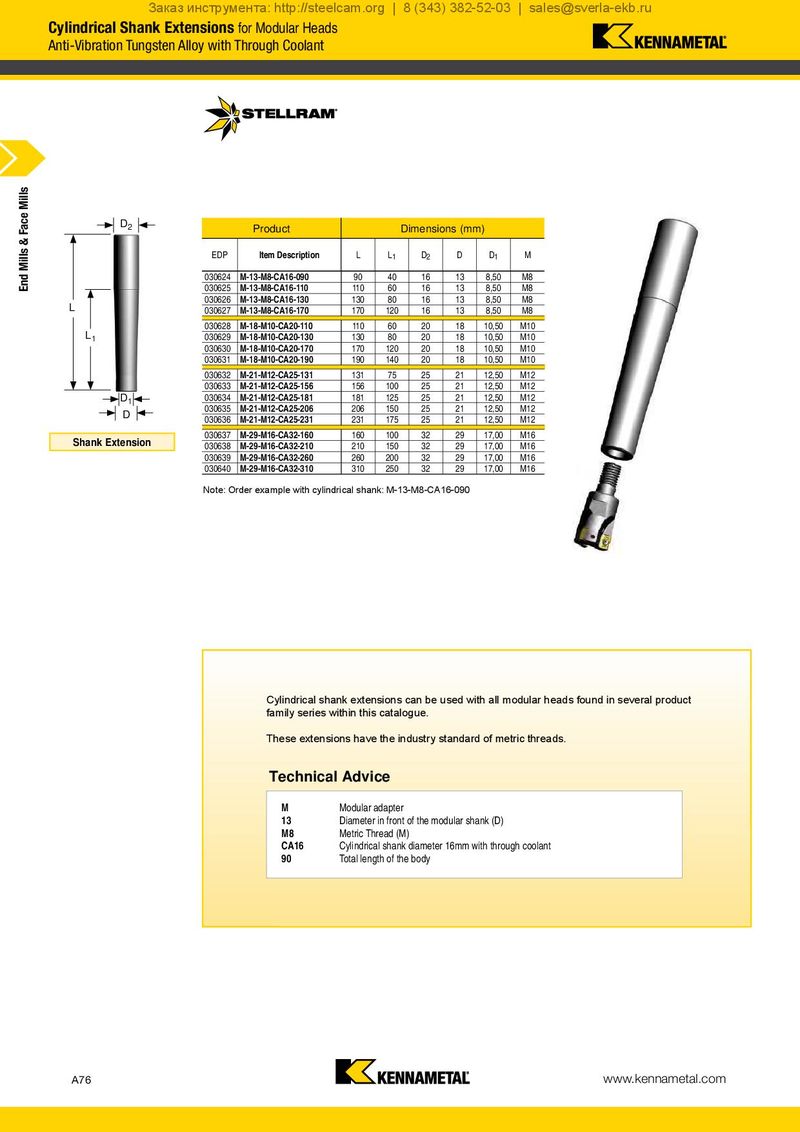

Заказ инструмента: http://steelcam.org | 8 (343) 382-52-03 | sales@sverla-ekb.ru Cylindrical Shank Extensions for Modular Heads Anti-Vibration Tungsten Alloy with Through Coolant End Mills & Face Mills D2 Product Dimensions (mm) EDP Item Description L L1 D2 D D1 M 030624 M-13-M8-CA16-090 90 40 16 13 8,50 M8 030625 M-13-M8-CA16-110 110 60 16 13 8,50 M8 L 030626 M-13-M8-CA16-130 130 80 16 13 8,50 M8 030627 M-13-M8-CA16-170 170 120 16 13 8,50 M8 L1 030628 M-18-M10-CA20-110 110 60 20 18 10,50 M10 030629 M-18-M10-CA20-130 130 80 20 18 10,50 M10 030630 M-18-M10-CA20-170 170 120 20 18 10,50 M10 030631 M-18-M10-CA20-190 190 140 20 18 10,50 M10 030632 M-21-M12-CA25-131 131 75 25 21 12,50 M12 030633 M-21-M12-CA25-156 156 100 25 21 12,50 M12 D1 030634 M-21-M12-CA25-181 181 125 25 21 12,50 M12 D 030635 M-21-M12-CA25-206 206 150 25 21 12,50 M12 030636 M-21-M12-CA25-231 231 175 25 21 12,50 M12 Shank Extension 030637 M-29-M16-CA32-160 160 100 32 29 17,00 M16 030638 M-29-M16-CA32-210 210 150 32 29 17,00 M16 030639 M-29-M16-CA32-260 260 200 32 29 17,00 M16 030640 M-29-M16-CA32-310 310 250 32 29 17,00 M16 Note: Order example with cylindrical shank: M-13-M8-CA16-090 Cylindrical shank extensions can be used with all modular heads found in several product family series within this catalogue. These extensions have the industry standard of metric threads. Technical Advice M Modular adapter 13 Diameter in front of the modular shank (D) M8 Metric Thread (M) CA16 Cylindrical shank diameter 16mm with through coolant 90 Total length of the body A76 www.kennametal.com
