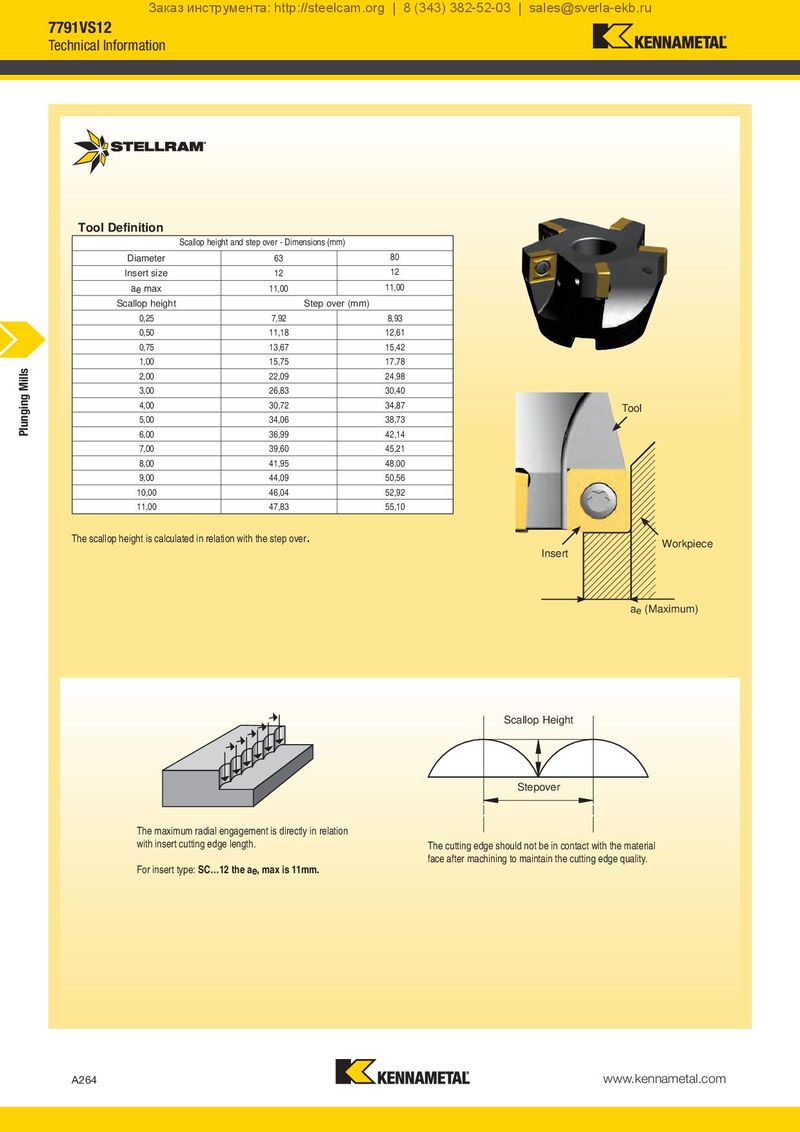

Заказ инструмента: http://steelcam.org | 8 (343) 382-52-03 | sales@sverla-ekb.ru 7791VS12 Technical Information Tool Definition Scallop height and step over - Dimensions (mm) Diameter 63 80 Insert size 12 12 ae max 11,00 11,00 Scallop height Step over (mm) 0,25 7,92 8,93 0,50 11,18 12,61 0,75 13,67 15,42 1,00 15,75 17,78 Plunging Mills 2,00 22,09 24,98 3,00 26,83 30,40 4,00 30,72 34,87 Tool 5,00 34,06 38,73 6,00 36,99 42,14 7,00 39,60 45,21 8,00 41,95 48,00 9,00 44,09 50,56 10,00 46,04 52,92 11,00 47,83 55,10 The scallop height is calculated in relation with the step over. Workpiece Insert ae (Maximum) Scallop Height Stepover The maximum radial engagement is directly in relation with insert cutting edge length. The cutting edge should not be in contact with the material face after machining to maintain the cutting edge quality. For insert type: SC…12 the ae, max is 11mm. A264 www.kennametal.com
