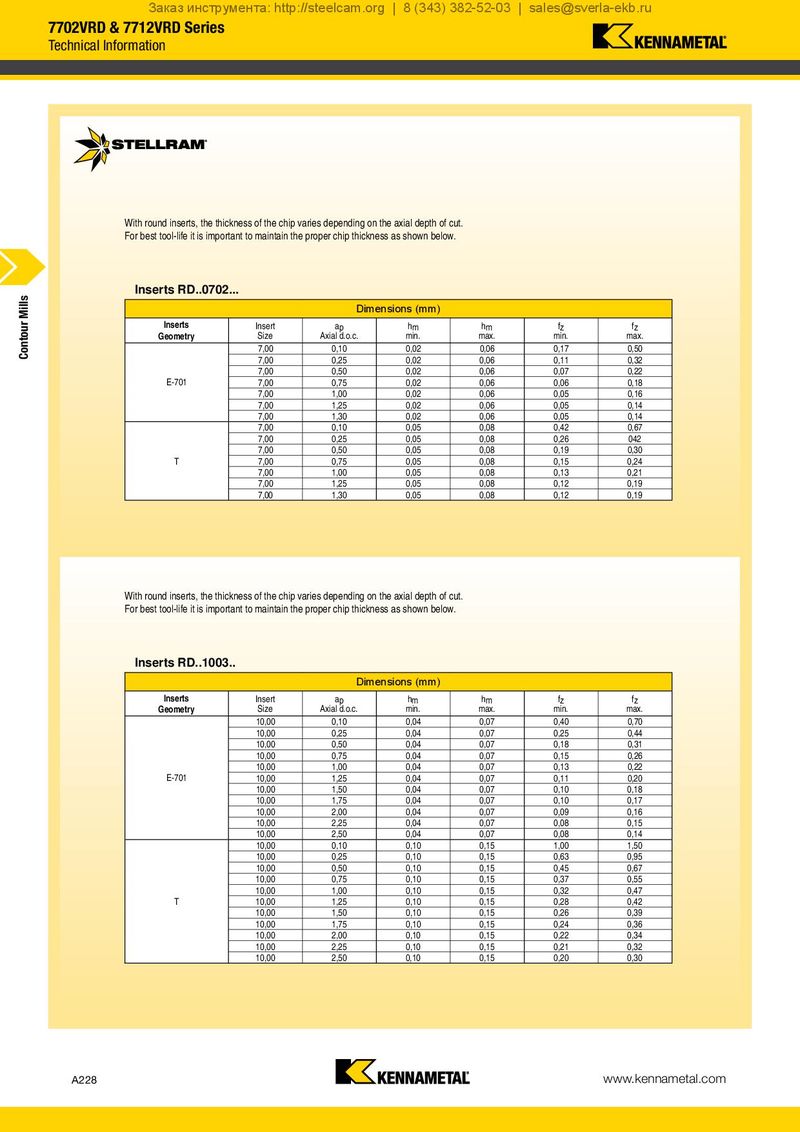

With round inserts, the thickness of the chip varies depending on the axial depth of cut. For best tool-life it is important to maintain the proper chip thickness as shown below.

Inserts RD..0702...

Dimensions (mm)
Inserts GeometryInsert Sizeap Axial d.o.c.hm min.hm max.fz min.fz max.
7,000,100,020,060,170,50
7,000,250,020,060,110,32
7,000,500,020,060,070,22
E-7017,000,750,020,060,060,18
7,001,000,020,060,050,16
7,001,250,020,060,050,14
7,001,300,020,060,050,14
7,000,100,050,080,420,67
7,000,250,050,080,26042
7,000,500,050,080,190,30
T7,000,750,050,080,150,24
7,001,000,050,080,130,21
7,001,250,050,080,120,19
7,001,300,050,080,120,19

With round inserts, the thickness of the chip varies depending on the axial depth of cut. For best tool-life it is important to maintain the proper chip thickness as shown below.

Inserts RD..1003..

Dimensions (mm)

Inserts Insertaphmhmfzfz
Geometry SizeAxial d.o.c.min.max.min.max.
10,000,100,040,070,400,70
10,000,250,040,070,250,44
10,000,500,040,070,180,31
10,000,750,040,070,150,26
10,001,000,040,070,130,22
E-701 10,001,250,040,070,110,20
10,001,500,040,070,100,18
10,001,750,040,070,100,17
10,002,000,040,070,090,16
10,002,250,040,070,080,15
10,002,500,040,070,080,14
10,000,100,100,151,001,50
10,000,250,100,150,630,95
10,000,500,100,150,450,67
10,000,750,100,150,370,55
10,001,000,100,150,320,47
T 10,001,250,100,150,280,42
10,001,500,100,150,260,39
10,001,750,100,150,240,36
10,002,000,100,150,220,34
10,002,250,100,150,210,32
10,002,500,100,150,200,30
