Каталог Stellram фрез со сменными пластинами - страница 209

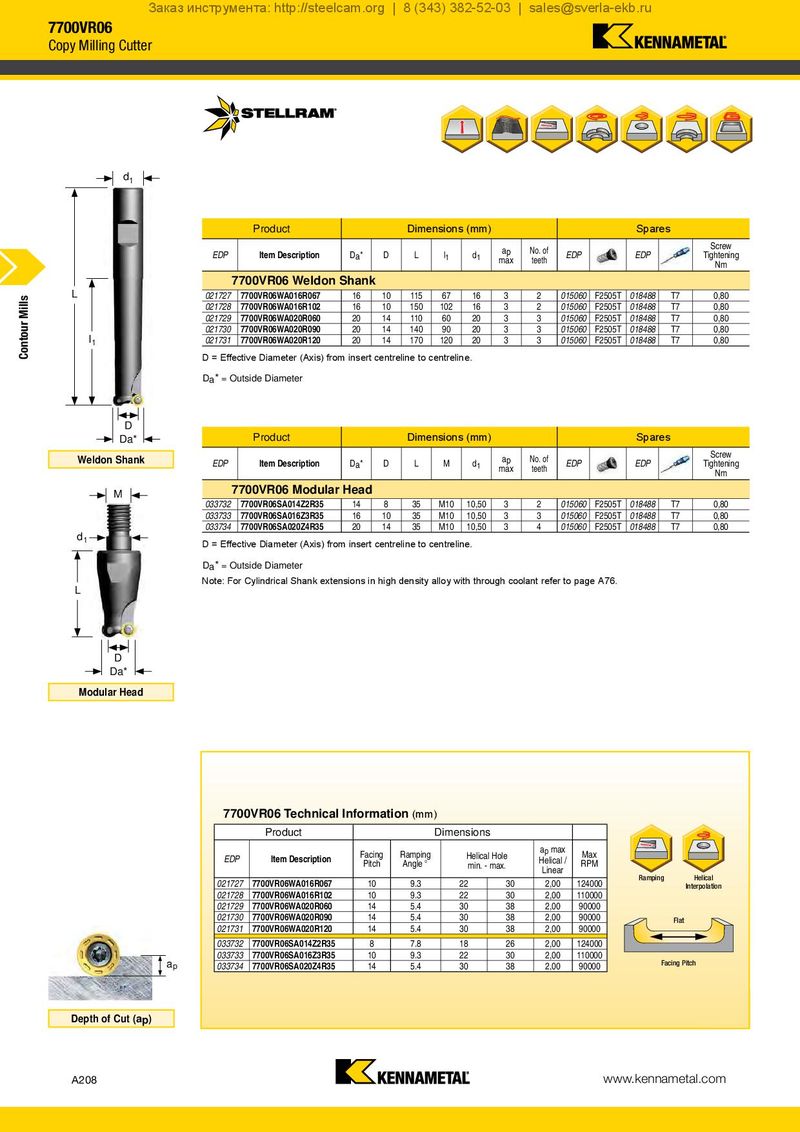

Заказ инструмента: http://steelcam.org | 8 (343) 382-52-03 | sales@sverla-ekb.ru 7700VR06 Copy Milling Cutter d1 Product Dimensions (mm) Spares ap No. of Screw EDP Item Description Da* D L l1 d1 max teeth EDP EDP Tightening Nm 7700VR06 Weldon Shank Contour Mills L 021727 7700VR06WA016R067 16 10 115 67 16 3 2 015060 F2505T 018488 T7 0,80 021728 7700VR06WA016R102 16 10 150 102 16 3 2 015060 F2505T 018488 T7 0,80 021729 7700VR06WA020R060 20 14 110 60 20 3 3 015060 F2505T 018488 T7 0,80 I1 021730 7700VR06WA020R090 20 14 140 90 20 3 3 015060 F2505T 018488 T7 0,80 021731 7700VR06WA020R120 20 14 170 120 20 3 3 015060 F2505T 018488 T7 0,80 D = Effective Diameter (Axis) from insert centreline to centreline. Da* = Outside Diameter D Da* Product Dimensions (mm) Spares Weldon Shank ap No. of Screw EDP Item Description Da* D L M d1 max teeth EDP EDP Tightening Nm M 7700VR06 Modular Head 033732 7700VR06SA014Z2R35 14 8 35 M10 10,50 3 2 015060 F2505T 018488 T7 0,80 033733 7700VR06SA016Z3R35 16 10 35 M10 10,50 3 3 015060 F2505T 018488 T7 0,80 d1 033734 7700VR06SA020Z4R35 20 14 35 M10 10,50 3 4 015060 F2505T 018488 T7 0,80 D = Effective Diameter (Axis) from insert centreline to centreline. Da* = Outside Diameter L Note: For Cylindrical Shank extensions in high density alloy with through coolant refer to page A76. D Da* Modular Head 7700VR06 Technical Information (mm) Product Dimensions EDP Item Description Facing Ramping Helical Hole ap max Max Pitch Angle ° min. - max. Helical / RPM Linear Ramping Helical 021727 7700VR06WA016R067 10 9.3 22 30 2,00 124000 Interpolation 021728 7700VR06WA016R102 10 9.3 22 30 2,00 110000 021729 7700VR06WA020R060 14 5.4 30 38 2,00 90000 021730 7700VR06WA020R090 14 5.4 30 38 2,00 90000 Flat 021731 7700VR06WA020R120 14 5.4 30 38 2,00 90000 033732 7700VR06SA014Z2R35 8 7.8 18 26 2,00 124000 ap 033733 7700VR06SA016Z3R35 10 9.3 22 30 2,00 110000 Facing Pitch 033734 7700VR06SA020Z4R35 14 5.4 30 38 2,00 90000 Depth of Cut (ap) A208 www.kennametal.com
