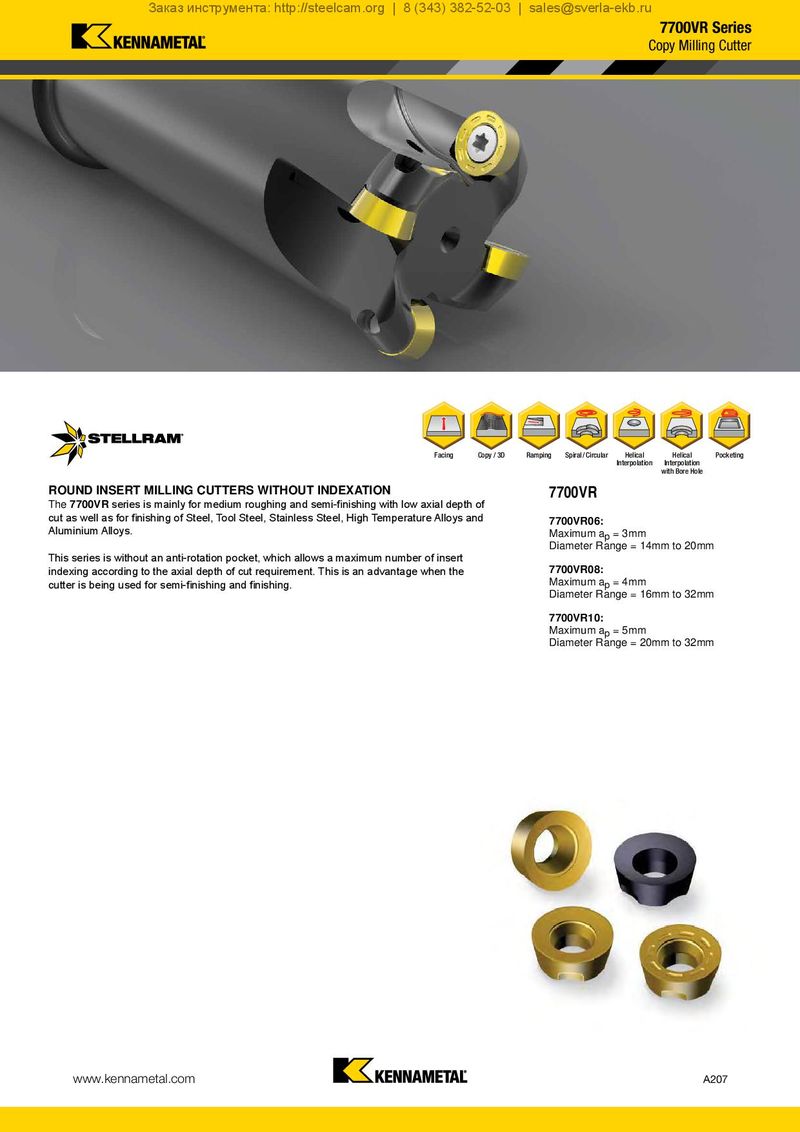

7700VR Series

Facing Copy / 3D

ROUND INSERT MILLING CUTTERS WITHOUT INDEXATION The 7700VR series is mainly for medium roughing and semi-finishing with low axial depth of cut as well as for finishing of Steel, Tool Steel, Stainless Steel, High Temperature Alloys and Aluminium Alloys. This series is without an anti-rotation pocket, which allows a maximum number of insert indexing according to the axial depth of cut requirement. This is an advantage when the cutter is being used for semi-finishing and finishing.

Ramping Spiral / Circular Helical Helical Pocketing

Interpolation Interpolation with Bore Hole 7700VR 7700VR06:

Maximum ap = 3mm Diameter Range = 14mm to 20mm

7700VR08: Maximum ap = 4mm Diameter Range = 16mm to 32mm

7700VR10: Maximum ap = 5mm Diameter Range = 20mm to 32mm
