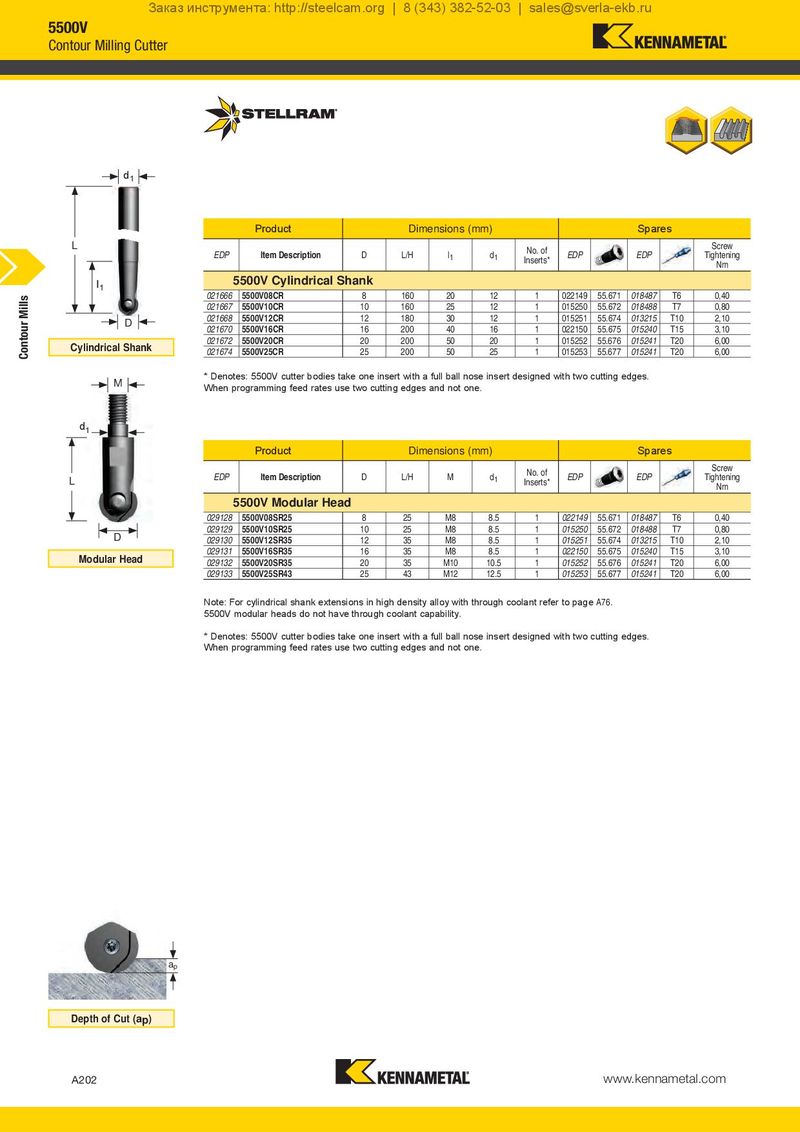

d
1
| Product | Dim | ensions ( | mm) | Spar | es | ||||||
| EDP | Item Description | D | L/H | l1 | d1 | No. of Inserts | EDP | EDP | Screw Tightening Nm | ||
| 5500V Cylindrical S | hank | ||||||||||
| 021666 | 5500V08CR | 8 | 160 | 20 | 12 | 1 | 022149 | 55.671 | 018487 | T6 | 0,40 |
| 021667 | 5500V10CR | 10 | 160 | 25 | 12 | 1 | 015250 | 55.672 | 018488 | T7 | 0,80 |
| 021668 | 5500V12CR | 12 | 180 | 30 | 12 | 1 | 015251 | 55.674 | 013215 | T10 | 2,10 |
| 021670 | 5500V16CR | 16 | 200 | 40 | 16 | 1 | 022150 | 55.675 | 015240 | T15 | 3,10 |
| 021672 | 5500V20CR | 20 | 200 | 50 | 20 | 1 | 015252 | 55.676 | 015241 | T20 | 6,00 |
| 021674 | 5500V25CR | 25 | 200 | 50 | 25 | 1 | 015253 | 55.677 | 015241 | T20 | 6,00 |
1
d
1
- Denotes: 5500V cutter bodies take one insert with a full ball nose insert designed with two cutting edges.
M When programming feed rates use two cutting edges and not one.
| Product | Dim | ensions ( | mm) | Spar | es | ||||||
| EDP | Item Description | D | L/H | M | d1 | No. of Inserts | EDP | EDP | Screw Tightening Nm | ||
| 5500V Modular He | ad | ||||||||||
| 029128 | 5500V08SR25 | 8 | 25 | M8 | 8.5 | 1 | 022149 | 55.671 | 018487 | T6 | 0,40 |
| 029129 | 5500V10SR25 | 10 | 25 | M8 | 8.5 | 1 | 015250 | 55.672 | 018488 | T7 | 0,80 |
| 029130 | 5500V12SR35 | 12 | 35 | M8 | 8.5 | 1 | 015251 | 55.674 | 013215 | T10 | 2,10 |
| 029131 | 5500V16SR35 | 16 | 35 | M8 | 8.5 | 1 | 022150 | 55.675 | 015240 | T15 | 3,10 |
| 029132 | 5500V20SR35 | 20 | 35 | M10 | 10.5 | 1 | 015252 | 55.676 | 015241 | T20 | 6,00 |
| 029133 | 5500V25SR43 | 25 | 43 | M12 | 12.5 | 1 | 015253 | 55.677 | 015241 | T20 | 6,00 |
Note: For cylindrical shank extensions in high density alloy with through coolant refer to page A76. 5500V modular heads do not have through coolant capability.
- Denotes: 5500V cutter bodies take one insert with a full ball nose insert designed with two cutting edges.
When programming feed rates use two cutting edges and not one.
a p
