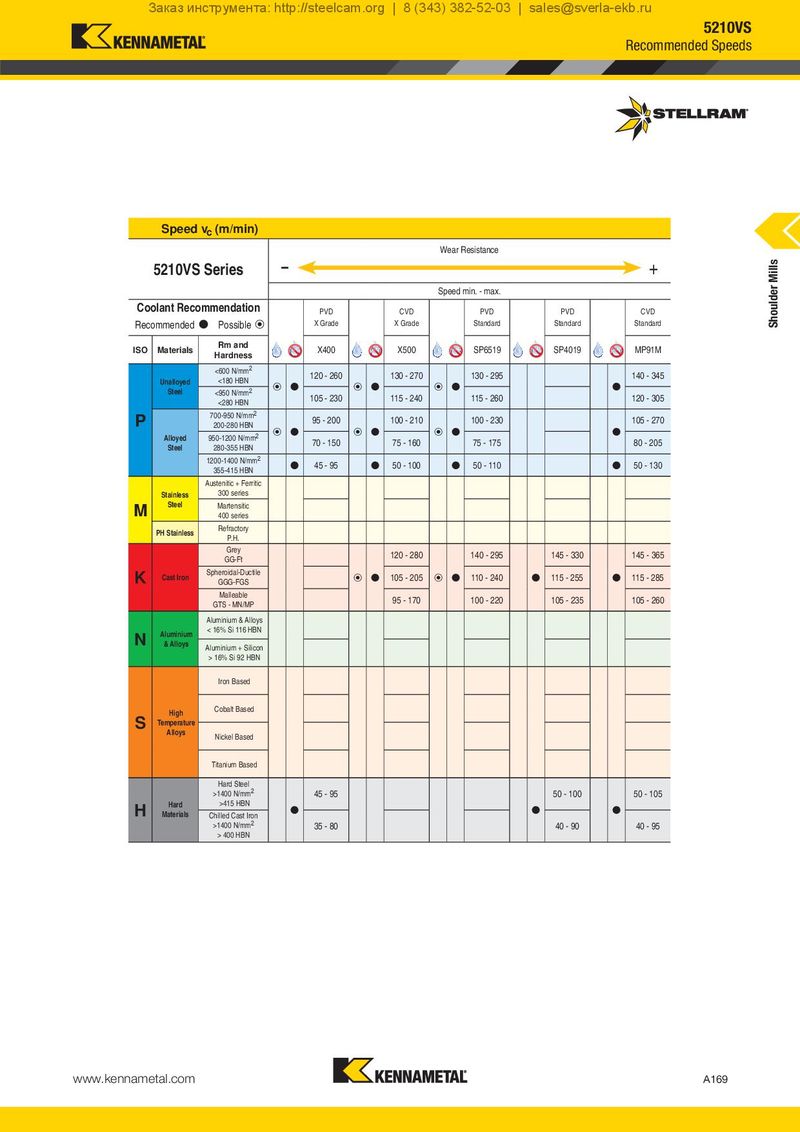

Speed v (m/min)
c
| 5210VS | Series | -- | Wear R | esistance | + | |||||||
| Speed | min. - max. | |||||||||||
| Reco Coo | mmended lant Reco | Possible mmendation | PVD X Grade | CVD X Grade | PVD Standard | PVD Standard | CVD Standard | |||||
| ISO | Materials | Rm and Hardness | X400 | X500 | SP6519 | SP4019 | MP91M | |||||
| Unalloyed | | 120 - 260 | | 130 - 270 | | 130 - 295 | | 140 - 345 | ||||
| Steel | 105 - 230 | 115 - 240 | 115 - 260 | 120 - 305 | ||||||||
| P | 700-950 N/mm2 200-280 HBN | | 95 - 200 | | 100 - 210 | | 100 - 230 | | 105 - 270 | |||
| Alloyed Steel | 950-1200 N/mm2 280-355 HBN | 70 - 150 | 75 - 160 | 75 - 175 | 80 - 205 | |||||||
| 1200-1400 N/mm2 355-415 HBN | | 45 - 95 | | 50 - 100 | | 50 - 110 | | 50 - 130 | ||||
| Stainless | Austenitic + Ferritic 300 series | |||||||||||
| M | Steel | Martensitic 400 series | ||||||||||
| PH Stainless | Refractory P.H. | |||||||||||
| Grey GG-Ft | 120 - 280 | 140 - 295 | 145 - 330 | 145 - 365 | ||||||||
| K | Cast Iron | Spheroidal-Ductile GGG-FGS | | 105 - 205 | | 110 - 240 | | 115 - 255 | | 115 - 285 | ||
| Malleable GTS - MN/MP | 95 - 170 | 100 - 220 | 105 - 235 | 105 - 260 | ||||||||
| N | Aluminium | Aluminium & Alloys < 16% Si 116 HBN | ||||||||||
| & Alloys | Aluminium + Silicon > 16% Si 92 HBN | |||||||||||
| Iron Based | ||||||||||||
| S | High Temerature | Cobalt Based | ||||||||||
| p Alloys | Nickel Based | |||||||||||
| Titanium Based | ||||||||||||
| H | Hard | Hard Steel >1400 N/mm2 >415 HBN | | 45 - 95 | | 50 - 100 | | 50 - 105 | ||||
| Materials | Chilled Cast Iron | |||||||||||
| >1400 N/mm2 > 400 HBN | 35 - 80 | 40 - 90 | 40 - 95 |
