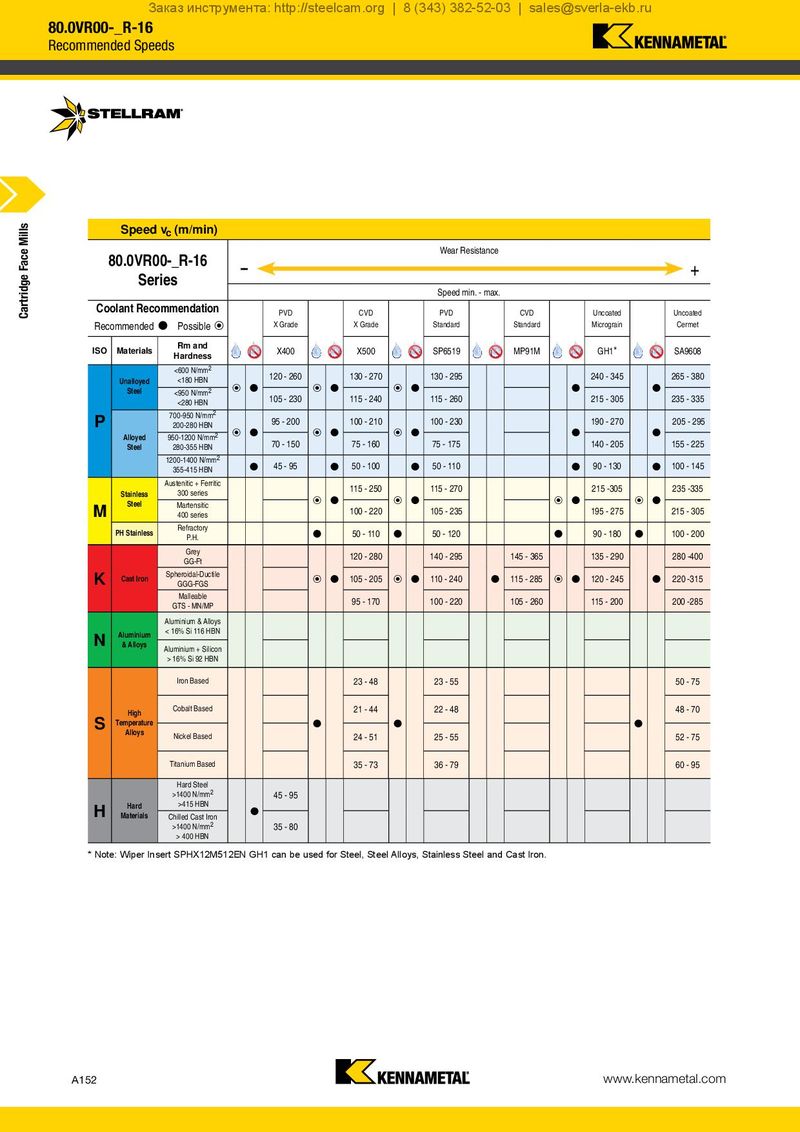

| Speed 80.0VR0 Ser | vc (m/min) 0-R-16 ies | -- | Wear R Speed m | esistance in. - max. | + | ||||||||
| Recommended Coolant Reco | Possible mmendation | PVD X Grade | CVD X Grade | PVD Standard | CVD Standard | Uncoated Micrograin | Uncoated Cermet | ||||||
| ISO Materials | Rm and Hardness | X400 | X500 | SP6519 | MP91M | GH1 | SA9608 | ||||||
| Unalloyed | | 120 - 260 | 130 - 270 | | 130 - 295 | 240 - 345 | | 265 - 380 | |||||
| Steel | 105 - 230 | 115 - 240 | 115 - 260 | 215 - 305 | 235 - 335 | ||||||||
| P | 700-950 N/mm2 200-280 HBN | 95 - 200 | 100 - 210 | 100 - 230 | 190 - 270 | 205 - 295 | |||||||
| Alloyed Steel | 950-1200 N/mm2 280-355 HBN | | 70 - 150 | 75 - 160 | | 75 - 175 | | 140 - 205 | | 155 - 225 | |||
| 1200-1400 N/mm2 355-415 HBN | | 45 - 95 | 50 - 100 | 50 - 110 | | 90 - 130 | | 100 - 145 | |||||
| Stainless | Austenitic + Ferritic 300 series | 115 - 250 | 115 - 270 | 215 -305 | 235 -335 | ||||||||
| M Steel | Martensitic 400 series | 100 - 220 | | 105 - 235 | | 195 - 275 | | 215 - 305 | |||||
| PH Stainless | Refractory P.H. | 50 - 110 | | 50 - 120 | | 90 - 180 | | 100 - 200 | |||||
| Grey GG-Ft | 120 - 280 | 140 - 295 | 145 - 365 | 135 - 290 | 280 -400 | ||||||||
| K Cast Iron | Spheroidal-Ductile GGG-FGS | 105 - 205 | | 110 - 240 | 115 - 285 | | | 120 - 245 | | 220 -315 | |||
| Malleable GTS - MN/MP | 95 - 170 | 100 - 220 | 105 - 260 | 115 - 200 | 200 -285 | ||||||||
| N Aluminium | Aluminium & Alloys < 16% Si 116 HBN | ||||||||||||
| & Alloys | Aluminium + Silicon > 16% Si 92 HBN | ||||||||||||
| Iron Based | 23 - 48 | 23 - 55 | 50 - 75 | ||||||||||
| High | Cobalt Based | 21 - 44 | 22 - 48 | 48 - 70 | |||||||||
| S Temperature Alloys | Nickel Based | 24 - 51 | | 25 - 55 | 52 - 75 | ||||||||
| Titanium Based | 35 - 73 | 36 - 79 | 60 - 95 | ||||||||||
| H Hard | Hard Steel >1400 N/mm2 >415 HBN | | 45 - 95 | ||||||||||
| Materials | Chilled Cast Iron >1400 N/mm2 > 400 HBN | 35 - 80 |
* Note: Wiper Insert SPHX12M512EN GH1 can be used for Steel, Steel Alloys, Stainless Steel and Cast Iron.
