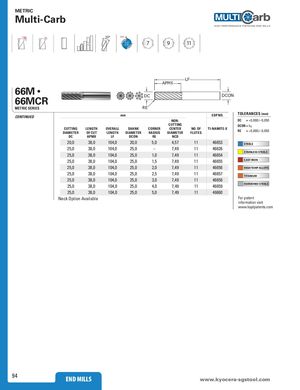

Общий каталог SGS 2021 - страница 94

METRIC Multi-Carb 35° POS 7 9 11 LF APMX 66M • DC DCON 66MCR RE METRIC SERIES mm EDP NO. TOLERANCES (mm) CONTINUED NON- DC = +0,000/–0,050 CUTTING DCON = h 6 CUTTING LENGTH OVERALL SHANK CORNER CENTER NO. OF TI-NAMITE-X RE = +0,000/–0,050 DIAMETER OF CUT LENGTH DIAMETER RADIUS DIAMETER FLUTES DC APMX LF DCON RE NCD 20,0 38,0 104,0 20,0 5,0 4,57 11 46653 STEELS 25,0 38,0 104,0 25,0 – 7,49 11 46626 STAINLESS STEELS 25,0 38,0 104,0 25,0 1,0 7,49 11 46654 25,0 38,0 104,0 25,0 1,5 7,49 11 46655 CAST IRON 25,0 38,0 104,0 25,0 2,0 7,49 11 46656 HIGH TEMP ALLOYS 25,0 38,0 104,0 25,0 2,5 7,49 11 46657 TITANIUM 25,0 38,0 104,0 25,0 3,0 7,49 11 46658 HARDENED STEELS 25,0 38,0 104,0 25,0 4,0 7,49 11 46659 25,0 38,0 104,0 25,0 5,0 7,49 11 46660 Neck Option Available For patent information visit www.ksptpatents.com 94 END MILLS END MILLS www.kyocera-sgstool.com
