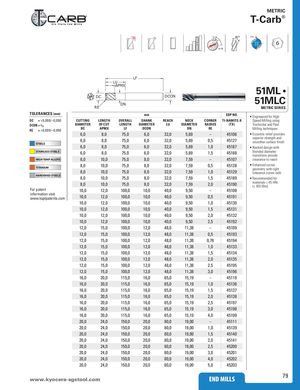

METRIC ® T-Carb® 41° POS 6 ≠ LF LU APMX DC DCON 51ML • RE DN 51MLC METRIC SERIES TOLERANCES (mm) mm EDP NO. • Engineered for High DC = +0,000/–0,050 CUTTING LENGTH OVERALL SHANK REACH NECK CORNER TI-NAMITE-X Speed Milling using DCON = h 6 DIAMETER OF CUT LENGTH DIAMETER LU DIAMETER RADIUS (TX) Trochoidal and Peel DC APMX LF DCON DN RE Milling techniques RE = +0,000/–0,050 6,0 8,0 75,0 6,0 32,0 5,69 – 45106 • Eccentric relief provides superior strength and 6,0 8,0 75,0 6,0 32,0 5,69 0,5 45127 smoother surface finish STEELS 6,0 8,0 75,0 6,0 32,0 5,69 1,0 45187 • Necked design with STAINLESS STEELS blended diameter 6,0 8,0 75,0 6,0 32,0 5,69 1,5 45188 transitions provide HIGH TEMP ALLOYS 8,0 10,0 75,0 8,0 32,0 7,59 – 45107 clearance to reach 8,0 10,0 75,0 8,0 32,0 7,59 0,5 45128 • Enhanced corner TITANIUM geometry with tight 8,0 10,0 75,0 8,0 32,0 7,59 1,0 45129 tolerance corner radii HARDENED STEELS 8,0 10,0 75,0 8,0 32,0 7,59 1,5 45189 • Recommended for materials ≤ 45 HRc 8,0 10,0 75,0 8,0 32,0 7,59 2,0 45190 (≤ 420 Bhn) For patent 10,0 12,0 100,0 10,0 40,0 9,50 – 45108 information visit www.ksptpatents.com 10,0 12,0 100,0 10,0 40,0 9,50 0,5 45191 10,0 12,0 100,0 10,0 40,0 9,50 1,0 45130 10,0 12,0 100,0 10,0 40,0 9,50 1,5 45131 10,0 12,0 100,0 10,0 40,0 9,50 2,0 45132 10,0 12,0 100,0 10,0 40,0 9,50 2,5 45192 12,0 15,0 100,0 12,0 48,0 11,38 – 45109 12,0 15,0 100,0 12,0 48,0 11,38 0,5 45193 12,0 15,0 100,0 12,0 48,0 11,38 0,76 45194 12,0 15,0 100,0 12,0 48,0 11,38 1,0 45133 12,0 15,0 100,0 12,0 48,0 11,38 1,5 45134 12,0 15,0 100,0 12,0 48,0 11,38 2,0 45135 12,0 15,0 100,0 12,0 48,0 11,38 2,5 45195 12,0 15,0 100,0 12,0 48,0 11,38 3,0 45196 16,0 20,0 115,0 16,0 65,0 15,19 – 45110 16,0 20,0 115,0 16,0 65,0 15,19 1,0 45136 16,0 20,0 115,0 16,0 65,0 15,19 1,5 45137 16,0 20,0 115,0 16,0 65,0 15,19 2,0 45138 16,0 20,0 115,0 16,0 65,0 15,19 2,5 45197 16,0 20,0 115,0 16,0 65,0 15,19 3,0 45198 16,0 20,0 115,0 16,0 65,0 15,19 4,0 45199 20,0 24,0 150,0 20,0 80,0 19,00 – 45111 20,0 24,0 150,0 20,0 80,0 19,00 1,0 45139 20,0 24,0 150,0 20,0 80,0 19,00 1,5 45140 20,0 24,0 150,0 20,0 80,0 19,00 2,0 45141 20,0 24,0 150,0 20,0 80,0 19,00 2,5 45200 20,0 24,0 150,0 20,0 80,0 19,00 3,0 45201 20,0 24,0 150,0 20,0 80,0 19,00 4,0 45202 20,0 24,0 150,0 20,0 80,0 19,00 5,0 45203 79 END MILLS www.kyocera-sgstool.com END MILLS
