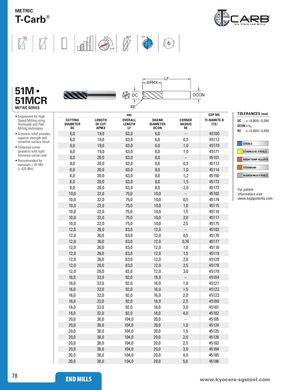

METRIC T-Carb® ® 41° POS 6 ≠ LF APMX 51M • DC DCON 51MCR RE METRIC SERIES mm EDP NO. TOLERANCES (mm) • Engineered for High Speed Milling using CUTTING LENGTH OVERALL SHANK CORNER TI-NAMITE-X DC = +0,000/–0,050 Trochoidal and Peel DIAMETER OF CUT LENGTH DIAMETER RADIUS (TX) DCON = h 6 Milling techniques DC APMX LF DCON RE RE = +0,000/–0,050 • Eccentric relief provides 6,0 19,0 63,0 6,0 – 45100 superior strength and smoother surface finish 6,0 19,0 63,0 6,0 0,5 45112 STEELS • Enhanced corner 6,0 19,0 63,0 6,0 1,0 45170 geometry with tight 6,0 19,0 63,0 6,0 1,5 45171 STAINLESS STEELS tolerance corner radii 8,0 20,0 63,0 8,0 – 45101 HIGH TEMP ALLOYS • Recommended for materials ≤ 45 HRc 8,0 20,0 63,0 8,0 0,5 45113 (≤ 420 Bhn) TITANIUM 8,0 20,0 63,0 8,0 1,0 45114 8,0 20,0 63,0 8,0 1,2 45150 HARDENED STEELS 8,0 20,0 63,0 8,0 1,5 45172 8,0 20,0 63,0 8,0 2,0 45173 For patent 10,0 22,0 75,0 10,0 – 45102 information visit 10,0 22,0 75,0 10,0 0,5 45174 www.ksptpatents.com 10,0 22,0 75,0 10,0 1,0 45115 10,0 22,0 75,0 10,0 1,5 45116 10,0 22,0 75,0 10,0 2,0 45117 10,0 22,0 75,0 10,0 2,5 45175 12,0 26,0 83,0 12,0 – 45103 12,0 26,0 83,0 12,0 0,5 45176 12,0 26,0 83,0 12,0 0,76 45177 12,0 26,0 83,0 12,0 1,0 45118 12,0 26,0 83,0 12,0 1,5 45119 12,0 26,0 83,0 12,0 2,0 45120 12,0 26,0 83,0 12,0 2,5 45178 12,0 26,0 83,0 12,0 3,0 45179 16,0 32,0 92,0 16,0 – 45104 16,0 32,0 92,0 16,0 1,0 45121 16,0 32,0 92,0 16,0 1,5 45122 16,0 32,0 92,0 16,0 2,0 45123 16,0 32,0 92,0 16,0 2,5 45180 16,0 32,0 92,0 16,0 3,0 45181 16,0 32,0 92,0 16,0 4,0 45182 20,0 38,0 104,0 20,0 – 45105 20,0 38,0 104,0 20,0 1,0 45124 20,0 38,0 104,0 20,0 1,5 45125 20,0 38,0 104,0 20,0 2,0 45126 20,0 38,0 104,0 20,0 2,5 45183 20,0 38,0 104,0 20,0 3,0 45184 20,0 38,0 104,0 20,0 4,0 45185 20,0 38,0 104,0 20,0 5,0 45186 78 END MILLS END MILLS www.kyocera-sgstool.com
