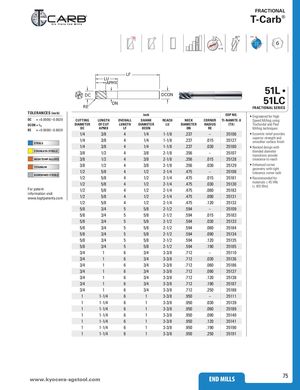

FRACTIONAL ® T-Carb® 41° POS 6 ≠ LF LU APMX DC DCON 51L • RE DN 51LC FRACTIONAL SERIES TOLERANCES (inch) inch EDP NO. • Engineered for High DC = +0.0000/–0.0020 CUTTING LENGTH OVERALL SHANK REACH NECK CORNER TI-NAMITE-X Speed Milling using DCON = h 6 DIAMETER OF CUT LENGTH DIAMETER LU DIAMETER RADIUS (TX) Trochoidal and Peel DC APMX LF DCON DN RE Milling techniques RE = +0.0000/–0.0020 1/4 3/8 4 1/4 1-1/8 .237 – 35106 • Eccentric relief provides superior strength and 1/4 3/8 4 1/4 1-1/8 .237 .015 35127 smoother surface finish STEELS 1/4 3/8 4 1/4 1-1/8 .237 .030 35180 • Necked design with STAINLESS STEELS 3/8 1/2 4 3/8 2-1/8 .356 – 35107 blended diameter transitions provide HIGH TEMP ALLOYS 3/8 1/2 4 3/8 2-1/8 .356 .015 35128 clearance to reach TITANIUM 3/8 1/2 4 3/8 2-1/8 .356 .030 35129 • Enhanced corner geometry with tight 1/2 5/8 4 1/2 2-1/4 .475 – 35108 tolerance corner radii HARDENED STEELS 1/2 5/8 4 1/2 2-1/4 .475 .015 35181 • Recommended for materials ≤ 45 HRc 1/2 5/8 4 1/2 2-1/4 .475 .030 35130 (≤ 420 Bhn) For patent 1/2 5/8 4 1/2 2-1/4 .475 .060 35182 information visit www.ksptpatents.com 1/2 5/8 4 1/2 2-1/4 .475 .090 35131 1/2 5/8 4 1/2 2-1/4 .475 .120 35132 5/8 3/4 5 5/8 2-1/2 .594 – 35109 5/8 3/4 5 5/8 2-1/2 .594 .015 35183 5/8 3/4 5 5/8 2-1/2 .594 .030 35133 5/8 3/4 5 5/8 2-1/2 .594 .060 35184 5/8 3/4 5 5/8 2-1/2 .594 .090 35134 5/8 3/4 5 5/8 2-1/2 .594 .120 35135 5/8 3/4 5 5/8 2-1/2 .594 .190 35185 3/4 1 6 3/4 3-3/8 .712 – 35110 3/4 1 6 3/4 3-3/8 .712 .030 35136 3/4 1 6 3/4 3-3/8 .712 .060 35186 3/4 1 6 3/4 3-3/8 .712 .090 35137 3/4 1 6 3/4 3-3/8 .712 .120 35138 3/4 1 6 3/4 3-3/8 .712 .190 35187 3/4 1 6 3/4 3-3/8 .712 .250 35188 1 1-1/4 6 1 3-3/8 .950 – 35111 1 1-1/4 6 1 3-3/8 .950 .030 35139 1 1-1/4 6 1 3-3/8 .950 .060 35189 1 1-1/4 6 1 3-3/8 .950 .090 35140 1 1-1/4 6 1 3-3/8 .950 .120 35141 1 1-1/4 6 1 3-3/8 .950 .190 35190 1 1-1/4 6 1 3-3/8 .950 .250 35191 75 END MILLS www.kyocera-sgstool.com END MILLS
