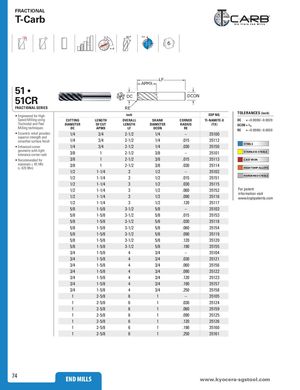

FRACTIONAL T-Carb ® 41° POS 6 ≠ LF APMX 51 • DC DCON 51CR FRACTIONAL SERIES RE inch EDP NO. TOLERANCES (inch) • Engineered for High Speed Milling using CUTTING LENGTH OVERALL SHANK CORNER TI-NAMITE-X DC = +0.0000/–0.0020 Trochoidal and Peel DIAMETER OF CUT LENGTH DIAMETER RADIUS (TX) DCON = h 6 Milling techniques DC APMX LF DCON RE RE = +0.0000/–0.0020 • Eccentric relief provides 1/4 3/4 2-1/2 1/4 – 35100 superior strength and smoother surface finish 1/4 3/4 2-1/2 1/4 .015 35112 STEELS • Enhanced corner 1/4 3/4 2-1/2 1/4 .030 35150 geometry with tight tolerance corner radii 3/8 1 2-1/2 3/8 – 35101 STAINLESS STEELS • Recommended for 3/8 1 2-1/2 3/8 .015 35113 CAST IRON materials ≤ 45 HRc 3/8 1 2-1/2 3/8 .030 35114 (≤ 420 Bhn) HIGH TEMP ALLOYS 1/2 1-1/4 3 1/2 – 35102 HARDENED STEELS 1/2 1-1/4 3 1/2 .015 35151 1/2 1-1/4 3 1/2 .030 35115 1/2 1-1/4 3 1/2 .060 35152 For patent information visit 1/2 1-1/4 3 1/2 .090 35116 www.ksptpatents.com 1/2 1-1/4 3 1/2 .120 35117 5/8 1-5/8 3-1/2 5/8 – 35103 5/8 1-5/8 3-1/2 5/8 .015 35153 5/8 1-5/8 3-1/2 5/8 .030 35118 5/8 1-5/8 3-1/2 5/8 .060 35154 5/8 1-5/8 3-1/2 5/8 .090 35119 5/8 1-5/8 3-1/2 5/8 .120 35120 5/8 1-5/8 3-1/2 5/8 .190 35155 3/4 1-5/8 4 3/4 – 35104 3/4 1-5/8 4 3/4 .030 35121 3/4 1-5/8 4 3/4 .060 35156 3/4 1-5/8 4 3/4 .090 35122 3/4 1-5/8 4 3/4 .120 35123 3/4 1-5/8 4 3/4 .190 35157 3/4 1-5/8 4 3/4 .250 35158 1 2-5/8 6 1 – 35105 1 2-5/8 6 1 .030 35124 1 2-5/8 6 1 .060 35159 1 2-5/8 6 1 .090 35125 1 2-5/8 6 1 .120 35126 1 2-5/8 6 1 .190 35160 1 2-5/8 6 1 .250 35161 74 END MILLS END MILLS www.kyocera-sgstool.com
