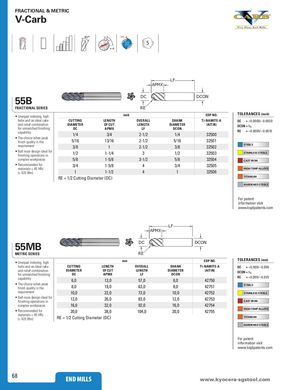

45° POS
5
| 55B | APM DC | LF X | DCON | ||
| FRACTIONAL SERIES | RE | ||||
| • Unequal indexing, high | inch | EDP NO. | |||
| helix and an ideal rake and relief combination for unmatched finishing | CUTTING DIAMETER DC | LENGTH OF CUT APMX | OVERALL LENGTH LF | SHANK DIAMETER DCON | Ti-NAMITE-A (AlTiN) |
| capability • Th hi h k | 1/4 | 3/4 | 2-1/2 | 1/4 | 32500 |
| e coce wen pea finish quality is the | 5/16 | 13/16 | 2-1/2 | 5/16 | 32501 |
| requirement | 3/8 | 1 | 2-1/2 | 3/8 | 32502 |
| • Ball nose design ideal for finishing operations in | 1/2 | 1-1/4 | 3 | 1/2 | 32503 |
| complex workpieces | 5/8 | 1-5/8 | 3-1/2 | 5/8 | 32504 |
| • Recommended for materials ≤ 45 HRc | 3/4 | 1-5/8 | 4 | 3/4 | 32505 |
| (≤ 420 Bhn) | 1 | 1-1/2 | 4 | 1 | 32506 |
| RE = 1/2 Cutting Dia | meter (DC) |
CAST IRON
HARDENED STEELS
For patent information visit www.ksptpatents.com
| 55MB | LF APMX DC | DCON | ||
| METRIC SERIES | RE | |||
| • Unequal indexing, high | mm | EDP NO. | ||
| helix and an ideal rake and relief combination for unmatched finishing | CUTTING DIAMETER DC | LENGTH OF CUT APMX | OVERALL LENGTH LF SHANK DIAMETER DCON | Ti-NAMITE-A (AlTiN) |
| capability | 6,0 | 13,0 | 57,0 6,0 | 42750 |
| • The choice when peak finish quality is the | 8,0 | 19,0 | 63,0 8,0 | 42751 |
| requirement | 10,0 | 22,0 | 72,0 10,0 | 42752 |
| • Ball nose design ideal for finishing operations in | 12,0 | 26,0 | 83,0 12,0 | 42753 |
| complex workpieces | 16,0 | 32,0 | 92,0 16,0 | 42754 |
| • Recommended for | 20,0 | 38,0 | 104,0 20,0 | 42755 |
| materials ≤ 45 HRc (≤ 420 Bhn) | RE = 1/2 Cutting Dia | meter (DC) |
STAINLESS STEELS
HARDENED STEELS
For patent information visit www.ksptpatents.com
