38° 35°
4

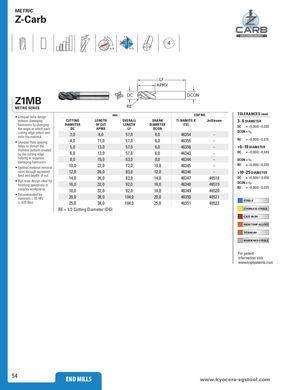

| Z1MB METRIC SERIES | DC RE | APMX LF | DCON | |||
| • Unequal helix design | mm | EDP N | O. | |||
| reduces damaging harmonics by changing the angle at which each | CUTTING DIAMETER DC | LENGTH OF CUT APMX | OVERALL LENGTH LF | SHANK DIAMETER DCON | Ti-NAMITE-X (TX) | JetStream |
| cutting edge enters and exits the material | 3,0 | 8,0 | 57,0 | 6,0 | 46354 | – |
| • Unequal flute spacing | 4,0 | 11,0 | 57,0 | 6,0 | 46355 | – |
| helps to disrupt the | 5,0 | 13,0 | 57,0 | 6,0 | 46356 | – |
| rhythmic pattern created by the cutting edge | 6,0 | 13,0 | 57,0 | 6,0 | 46343 | – |
| helping to suppress damain harmonics | 8,0 | 19,0 | 63,0 | 8,0 | 46344 | – |
| gg • Optimal material removal | 10,0 | 22,0 | 72,0 | 10,0 | 46345 | – |
| rates through increased | 12,0 | 26,0 | 83,0 | 12,0 | 46346 | – |
| feed and depths of cut • Ball nose desin ideal for | 14,0 | 26,0 | 83,0 | 14,0 | 46347 | 46518 |
| g finishing operations in | 16,0 | 32,0 | 92,0 | 16,0 | 46348 | 46519 |
| complex workpieces | 18,0 | 32,0 | 92,0 | 18,0 | 46349 | 46520 |
| • Recommended for materials ≤ 45 HRc | 20,0 | 38,0 | 104,0 | 20,0 | 46350 | 46521 |
| (≤ 420 Bhn) | 25,0 | 38,0 | 104,0 | 25,0 | 46351 | 46522 |
DC = +0,000/–0,050
RE = 1/2 Cutting Diameter (DC) STAINLESS STEELS CAST IRON HIGH TEMP ALLOYS TITANIUM HARDENED STEELS For patent information visit www.ksptpatents.com
