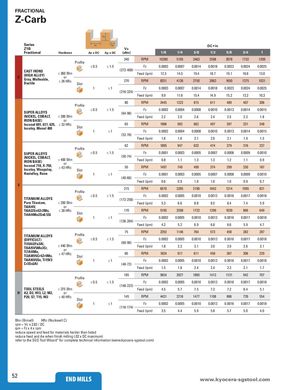

| Series Z1B | Ae | Ap Ae | Vc | DC • in | |||||||||
| Fractional | Hardness | Ae x DC | Ap x DC | (sfm) | 1/8 | 1/4 | 3/8 | 1/2 | 5/8 | 3/4 | 1 | ||
| Profile | 340 | RPM | 10390 | 5195 | 3463 | 2598 | 2078 | 1732 | 1299 | ||||
| ≤ 0.5 | ≤ 1.5 | Fz | 0.0003 | 0.0007 | 0.0014 | 0.0018 | 0.0023 | 0.0024 | 0.0025 | ||||
| K CAST IRONS (HIGH ALLOY) | ≤ 260 Bhn or | (272-408) | Feed (ipm) | 12.5 | 14.5 | 19.4 | 18.7 | 19.1 | 16.6 | 13.0 | |||
| Gray, Malleable, Ductile | ≤ 26 HRc | Slot | 270 | RPM | 8251 | 4126 | 2750 | 2063 | 1650 | 1375 | 1031 | ||
| 1 | ≤ 1 | (216324) | Fz | 0.0003 | 0.0007 | 0.0014 | 0.0018 | 0.0023 | 0.0024 | 0.0025 | |||
| - | Feed (ipm) | 9.9 | 11.6 | 15.4 | 14.9 | 15.2 | 13.2 | 10.3 | |||||
| Profile | 80 | RPM | 2445 | 1222 | 815 | 611 | 489 | 407 | 306 | ||||
| SUPER ALLOYS | ≤ 0.5 | ≤ 1.5 | (6496) | Fz | 0.0002 | 0.0004 | 0.0008 | 0.0010 | 0.0013 | 0.0014 | 0.0015 | ||
| (NICKEL, COBALT, IRON BASE) | ≤ 300 Bhn | - | Feed (ipm) | 2.2 | 2.0 | 2.6 | 2.4 | 2.5 | 2.3 | 1.8 | |||
| Inconel 601, 617, 625, | or ≤ 32 HRc | Slot | 65 | RPM | 1986 | 993 | 662 | 497 | 397 | 331 | 248 | ||
| Incoloy, Monel 400 | 1 | ≤ 1 | Fz | 0.0002 | 0.0004 | 0.0008 | 0.0010 | 0.0013 | 0.0014 | 0.0015 | |||
| (52-78) | Feed (ipm) | 1.6 | 1.6 | 2.1 | 2.0 | 2.1 | 1.9 | 1.5 | |||||
| Profile | 62 | RPM | 1895 | 947 | 632 | 474 | 379 | 316 | 237 | ||||
| SUPER ALLOYS | ≤ 0.5 | ≤ 1.5 | Fz | 0.0001 | 0.0003 | 0.0005 | 0.0007 | 0.0008 | 0.0009 | 0.0010 | |||
| (NICKEL, COBALT, IRON BASE) | ≤ 400 Bhn | (50-74) | Feed (ipm) | 0.8 | 1.1 | 1.3 | 1.3 | 1.2 | 1.1 | 0.9 | |||
| Inconel 718, X-750, Incoloy Waspaloy | or ≤ 43 HRc | Slot | 50 | RPM | 1497 | 749 | 499 | 374 | 299 | 250 | 187 | ||
| , , Hastelloy, Rene | 1 | ≤ 1 | (4060) | Fz | 0.0001 | 0.0003 | 0.0005 | 0.0007 | 0.0008 | 0.0009 | 0.0010 | ||
| - | Feed (ipm) | 0.6 | 0.9 | 1.0 | 1.0 | 1.0 | 0.9 | 0.7 | |||||
| S | Profile | 215 | RPM | 6570 | 3285 | 2190 | 1643 | 1314 | 1095 | 821 | |||
| TITANIUM ALLOYS | ≤ 0.5 | ≤ 1.5 | (172-258) | Fz | 0.0002 | 0.0005 | 0.0010 | 0.0013 | 0.0016 | 0.0017 | 0.0018 | ||
| Pure Titanium, Ti6Al4V | ≤ 350 Bhn | Feed (ipm) | 5.3 | 6.6 | 8.8 | 8.5 | 8.4 | 7.4 | 5.9 | ||||
| , Ti6Al2Sn4Zr2Mo, | or ≤ 38 HRc | Slot | 170 | RPM | 5195 | 2598 | 1732 | 1299 | 1039 | 866 | 649 | ||
| Ti4Al4Mo2Sn0.5Si | 1 | ≤ 1 | Fz | 0.0002 | 0.0005 | 0.0010 | 0.0013 | 0.0016 | 0.0017 | 0.0018 | |||
| (136-204) | Feed (ipm) | 4.2 | 5.2 | 6.9 | 6.8 | 6.6 | 5.9 | 4.7 | |||||
| Profile | 75 | RPM | 2292 | 1146 | 764 | 573 | 458 | 382 | 287 | ||||
| TITANIUM ALLOYS (DIFFICULT) | ≤ 0.5 | ≤ 1.5 | (6090) | Fz | 0.0002 | 0.0005 | 0.0010 | 0.0013 | 0.0016 | 0.0017 | 0.0018 | ||
| Ti10Al2Fe3Al, Ti5Al5V5Mo3Cr, | ≤ 440 Bhn | - | Feed (ipm) | 1.8 | 2.3 | 3.1 | 3.0 | 2.9 | 2.6 | 2.1 | |||
| Ti7Al4Mo, Ti3Al8V6Cr4Zr4Mo | or ≤ 47 HRc | Slot | 60 | RPM | 1834 | 917 | 611 | 458 | 367 | 306 | 229 | ||
| , Ti6Al6V6Sn, Ti15V3 | 1 | ≤ 1 | Fz | 0.0002 | 0.0005 | 0.0010 | 0.0013 | 0.0016 | 0.0017 | 0.0018 | |||
| Cr3Sn3Al | (48-72) | Feed (ipm) | 1.5 | 1.8 | 2.4 | 2.4 | 2.3 | 2.1 | 1.7 | ||||
| Profile | 185 | RPM | 5654 | 2827 | 1885 | 1413 | 1131 | 942 | 707 | ||||
| ≤ 0.5 | ≤ 1.5 | Fz | 0.0002 | 0.0005 | 0.0010 | 0.0013 | 0.0016 | 0.0017 | 0.0018 | ||||
| H TOOL STEELS A2 D2 H13 L2 M2 | ≤ 375 Bhn | (148-222) | Feed (ipm) | 4.5 | 5.7 | 7.5 | 7.3 | 7.2 | 6.4 | 5.1 | |||
| , , , , , P20, S7, T15, W2 | or ≤ 40 HRc | Slot | 145 | RPM | 4431 | 2216 | 1477 | 1108 | 886 | 739 | 554 | ||
| 1 | ≤ 1 | Fz | 0.0002 | 0.0005 | 0.0010 | 0.0013 | 0.0016 | 0.0017 | 0.0018 | ||||
| (116-174) | Feed (ipm) | 3.5 | 4.4 | 5.9 | 5.8 | 5.7 | 5.0 | 4.0 |
Bhn (Brinell) HRc (Rockwell C) rpm = Vc x 3.82 / DC ipm = Fz x 4 x rpm reduce speed and feed for materials harder than listed reduce feed and Ae when finish milling (.02 x DC maximum) refer to the SGS Tool Wizard® for complete technical information (www.kyocera-sgstool.com)
