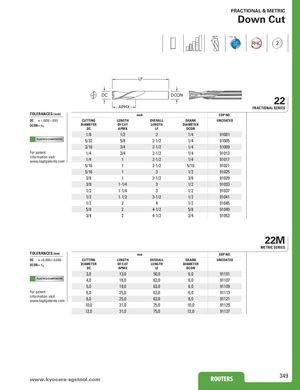

Общий каталог SGS 2021 - страница 349

FRACTIONAL & METRIC Down Cut 35° POS RHC 2 LF DC DCON APMX 22 FRACTIONAL SERIES TOLERANCES (inch) inch EDP NO. DC = +.000/–.003 CUTTING LENGTH OVERALL SHANK UNCOATED DCON = h 6 DIAMETER OF CUT LENGTH DIAMETER DC APMX LF DCON 1/8 1/2 2 1/4 91001 PLASTICS/COMPOSITES 5/32 5/8 2-1/2 1/4 91005 3/16 3/4 2-1/2 1/4 91009 For patent 1/4 3/4 2-1/2 1/4 91013 information visit www.ksptpatents.com 1/4 1 2-1/2 1/4 91017 5/16 1 2-1/2 5/16 91021 5/16 1 3 1/2 91025 3/8 1 2-1/2 3/8 91029 3/8 1-1/4 3 1/2 91033 1/2 1-1/4 3 1/2 91037 1/2 1-1/2 3-1/2 1/2 91041 1/2 2 4 1/2 91045 5/8 2 4-1/2 5/8 91049 3/4 2 4-1/2 3/4 91053 22M METRIC SERIES TOLERANCES (mm) mm EDP NO. DC = +0,000/–0,080 CUTTING LENGTH OVERALL SHANK UNCOATED DCON = h 6 DIAMETER OF CUT LENGTH DIAMETER DC APMX LF DCON 3,0 13,0 50,0 6,0 91101 PLASTICS/COMPOSITES 4,0 16,0 63,0 6,0 91107 5,0 19,0 63,0 6,0 91109 For patent 6,0 25,0 63,0 6,0 91113 information visit www.ksptpatents.com 8,0 25,0 63,0 8,0 91121 10,0 31,0 75,0 10,0 91129 12,0 31,0 75,0 12,0 91137 349 ROUTERS www.kyocera-sgstool.com ROUTERS
