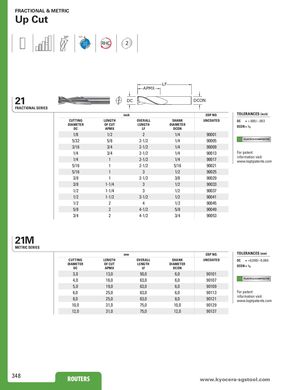

FRACTIONAL & METRIC Up Cut 35° POS RHC 2 LF APMX 21 DC DCON FRACTIONAL SERIES inch EDP NO. TOLERANCES (inch) CUTTING LENGTH OVERALL SHANK UNCOATED DC = +.000/–.003 DIAMETER OF CUT LENGTH DIAMETER DCON = h 6 DC APMX LF DCON 1/8 1/2 2 1/4 90001 5/32 5/8 2-1/2 1/4 90005 PLASTICS/COMPOSITES 3/16 3/4 2-1/2 1/4 90009 1/4 3/4 2-1/2 1/4 90013 For patent information visit 1/4 1 2-1/2 1/4 90017 www.ksptpatents.com 5/16 1 2-1/2 5/16 90021 5/16 1 3 1/2 90025 3/8 1 2-1/2 3/8 90029 3/8 1-1/4 3 1/2 90033 1/2 1-1/4 3 1/2 90037 1/2 1-1/2 3-1/2 1/2 90041 1/2 2 4 1/2 90045 5/8 2 4-1/2 5/8 90049 3/4 2 4-1/2 3/4 90053 21M METRIC SERIES mm EDP NO. TOLERANCES (mm) CUTTING LENGTH OVERALL SHANK UNCOATED DC = +0,000/–0,080 DIAMETER OF CUT LENGTH DIAMETER DCON = h 6 DC APMX LF DCON 3,0 13,0 50,0 6,0 90101 4,0 16,0 63,0 6,0 90107 PLASTICS/COMPOSITES 5,0 19,0 63,0 6,0 90109 6,0 25,0 63,0 6,0 90113 For patent information visit 8,0 25,0 63,0 8,0 90121 www.ksptpatents.com 10,0 31,0 75,0 10,0 90129 12,0 31,0 75,0 12,0 90137 348 ROUTERS ROUTERS www.kyocera-sgstool.com
