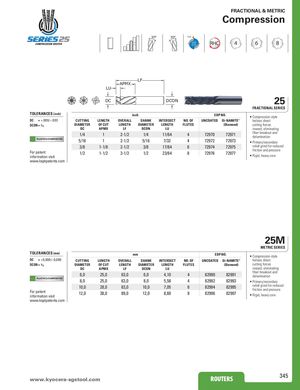

FRACTIONAL & METRIC Compression 30° 30° POS RHC 4 6 8 LF APMX LU DC DCON 25 FRACTIONAL SERIES TOLERANCES (inch) inch EDP NO. • Compression-style DC = +.000/–.003 CUTTING LENGTH OVERALL SHANK INTERSECT NO. OF UNCOATED Di-NAMITE® helixes direct DCON = h 6 DIAMETER OF CUT LENGTH DIAMETER LENGTH FLUTES (Diamond) cutting forces DC APMX LF DCON LU inward, eliminating fiber breakout and 1/4 1 2-1/2 1/4 11/64 4 72970 72971 delamination PLASTICS/COMPOSITES 5/16 1 2-1/2 5/16 7/32 4 72972 72973 • Primary/secondary 3/8 1-1/8 2-1/2 3/8 17/64 6 72974 72975 relief grind for reduced friction and pressure For patent 1/2 1-1/2 3-1/2 1/2 23/64 8 72976 72977 information visit • Rigid, heavy core www.ksptpatents.com 25M METRIC SERIES TOLERANCES (mm) mm EDP NO. • Compression-style DC = +0,000/–0,080 CUTTING LENGTH OVERALL SHANK INTERSECT NO. OF UNCOATED Di-NAMITE® helixes direct DCON = h 6 DIAMETER OF CUT LENGTH DIAMETER LENGTH FLUTES (Diamond) cutting forces DC APMX LF DCON LU inward, eliminating fiber breakout and 6,0 25,0 63,0 6,0 4,10 4 82990 82991 delamination PLASTICS/COMPOSITES 8,0 25,0 63,0 8,0 5,58 4 82992 82993 • Primary/secondary 10,0 28,0 63,0 10,0 7,05 6 82994 82995 relief grind for reduced friction and pressure For patent 12,0 38,0 89,0 12,0 8,60 8 82996 82997 information visit • Rigid, heavy core www.ksptpatents.com 345 ROUTERS www.kyocera-sgstool.com ROUTERS
