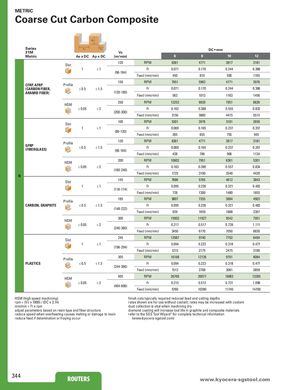

METRIC Coarse Cut Carbon Composite Ap Series Ae Ae DC • mm 31M Vc Metric Ae x DC Ap x DC (m/min) 6 8 10 12 120 RPM 6361 4771 3817 3181 Slot 1 ≤1 Fr 0.071 0.170 0.244 0.366 (96-164) Feed (mm/min) 450 810 930 1165 150 RPM 7951 5963 4771 3976 CFRP, AFRP Profile (CARBON FIBER, ≤ 0.5 ≤ 1.5 Fr 0.071 0.170 0.244 0.366 ARAMID FIBER) (120-180) Feed (mm/min) 563 1013 1163 1456 250 RPM 13252 9939 7951 6626 HSM ≤ 0.05 ≤2 Fr 0.162 0.388 0.555 0.832 (200-300) Feed (mm/min) 2150 3860 4415 5515 100 RPM 5301 3976 3181 2650 Slot 1 ≤1 Fr 0.069 0.165 0.237 0.357 (80-120) Feed (mm/min) 365 655 755 945 120 RPM 6361 4771 3817 3181 Profile GFRP ≤ 0.5 ≤ 1.5 Fr 0.069 0.165 0.237 0.357 (FIBERGLASS) (96-164) Feed (mm/min) 438 786 906 1134 200 RPM 10602 7951 6361 5301 HSM ≤ 0.05 ≤2 Fr 0.163 0.390 0.557 0.834 (160-240) Feed (mm/min) 1725 3100 3540 4420 N 145 RPM 7686 5765 4612 3843 Slot 1 ≤1 Fr 0.095 0.226 0.321 0.483 (116-174) Feed (mm/min) 728 1300 1480 1855 185 RPM 9807 7355 5884 4903 Profile CARBON, GRAPHITE ≤ 0.5 ≤ 1.5 Fr 0.095 0.226 0.321 0.483 (148-222) Feed (mm/min) 929 1659 1888 2367 300 RPM 15903 11927 9542 7951 HSM ≤ 0.05 ≤2 Fr 0.217 0.517 0.739 1.111 (240-360) Feed (mm/min) 3450 6170 7050 8830 245 RPM 12987 9740 7792 6494 Slot 1 ≤1 Fr 0.094 0.223 0.318 0.477 (196-294) Feed (mm/min) 1215 2175 2475 3100 305 RPM 16168 12126 9701 8084 Profile PLASTICS ≤ 0.5 ≤ 1.5 Fr 0.094 0.223 0.318 0.477 (244-366) Feed (mm/min) 1513 2708 3081 3859 505 RPM 26769 20077 16062 13385 HSM ≤ 0.05 ≤2 Fr 0.215 0.512 0.731 1.098 (404-606) Feed (mm/min) 5760 10280 11745 14700 HSM (high speed machining) finish cuts typically required reduced feed and cutting depths rpm = (Vc x 1000) / (DC x 3.14) rates shown are for use without coolant; rates may be increased with coolant mm/min = Fr x rpm dust collection is vital when machining dry adjust parameters based on resin type and fiber structure diamond coating will increase tool life in graphite and composite materials reduce speed when overheating causes melting or damage to resin refer to the SGS Tool Wizard® for complete technical information reduce feed if delamination or fraying occur   (www.kyocera-sgstool.com) 344 ROUTERS ROUTERS www.kyocera-sgstool.com
