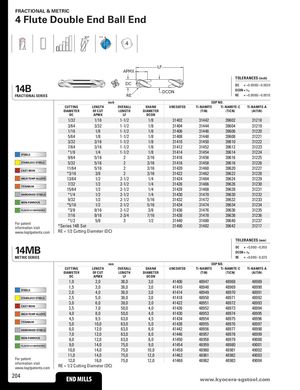

Общий каталог SGS 2021 - страница 204

FRACTIONAL & METRIC 4 Flute Double End Ball End 30° POS 4 LF APMX TOLERANCES (inch) DC 14B DC = +0.0000/–0.0020 DCON = h 6 DCON FRACTIONAL SERIES RE RE = +0.0000/–0.0010 inch EDP NO. CUTTING LENGTH OVERALL SHANK UNCOATED Ti-NAMITE Ti-NAMITE-C Ti-NAMITE-A DIAMETER OF CUT LENGTH DIAMETER (TiN) (TiCN) (AlTiN) DC APMX LF DCON 1/32 1/16 1-1/2 1/8 31402 31442 39602 31218 3/64 3/32 1-1/2 1/8 31404 31444 39604 31219 1/16 1/8 1-1/2 1/8 31406 31446 39606 31220 5/64 1/8 1-1/2 1/8 31408 31448 39608 31221 3/32 3/16 1-1/2 1/8 31410 31450 39610 31222 7/64 3/16 1-1/2 1/8 31412 31452 39612 31223 STEELS *1/8 1/4 1-1/2 1/8 31414 31454 39614 31224 9/64 5/16 2 3/16 31416 31456 39616 31225 STAINLESS STEELS 5/32 5/16 2 3/16 31418 31458 39618 31226 CAST IRON 11/64 5/16 2 3/16 31420 31460 39620 31227 *3/16 3/8 2 3/16 31422 31462 39622 31228 HIGH TEMP ALLOYS 13/64 1/2 2-1/2 1/4 31424 31464 39624 31229 TITANIUM 7/32 1/2 2-1/2 1/4 31426 31466 39626 31230 15/64 1/2 2-1/2 1/4 31428 31468 39628 31231 HARDENED STEELS *1/4 1/2 2-1/2 1/4 31430 31470 39630 31232 9/32 1/2 2-1/2 5/16 31432 31472 39632 31233 NON-FERROUS *5/16 1/2 2-1/2 5/16 31434 31474 39634 31234 PLASTICS/COMPOSITES *3/8 9/16 2-1/2 3/8 31436 31476 39636 31235 7/16 9/16 2-3/4 7/16 31438 31478 39638 31236 *1/2 5/8 3 1/2 31440 31480 39640 31237 For patent information visit *Series 14B Set 31490 31482 39642 31217 www.ksptpatents.com RE = 1/2 Cutting Diameter (DC) TOLERANCES (mm) 14MB DC = +0,000/–0,050 DCON = h 6 METRIC SERIES RE = +0,000/–0,025 mm EDP NO. CUTTING LENGTH OVERALL SHANK UNCOATED Ti-NAMITE Ti-NAMITE-C Ti-NAMITE-A DIAMETER OF CUT LENGTH DIAMETER (TiN) (TiCN) (AlTiN) DC APMX LF DCON 1,0 2,0 38,0 3,0 41406 48947 48968 48989 1,5 3,0 38,0 3,0 41410 48948 48969 48990 STEELS 2,0 4,0 38,0 3,0 41414 48949 48970 48991 STAINLESS STEELS 2,5 5,0 38,0 3,0 41418 48950 48971 48992 3,0 6,0 38,0 3,0 41422 48951 48972 48993 CAST IRON 3,5 7,0 50,0 4,0 41426 48952 48973 48994 HIGH TEMP ALLOYS 4,0 8,0 50,0 4,0 41430 48953 48974 48995 4,5 9,5 63,0 4,5 41434 48954 48975 48996 TITANIUM 5,0 10,0 63,0 5,0 41438 48955 48976 48997 HARDENED STEELS 6,0 12,0 63,0 6,0 41442 48956 48977 48998 7,0 12,0 63,0 8,0 41446 48957 48978 48999 NON-FERROUS 8,0 12,0 63,0 8,0 41450 48958 48979 49000 PLASTICS/COMPOSITES 9,0 14,0 75,0 9,0 41454 48959 48980 49001 10,0 14,0 75,0 10,0 41458 48960 48981 49002 11,0 14,0 75,0 12,0 41462 48961 48982 49003 For patent 12,0 16,0 75,0 12,0 41466 48962 48983 49004 information visit www.ksptpatents.com RE = 1/2 Cutting Diameter (DC) 204 END MILLS END MILLS www.kyocera-sgstool.com
