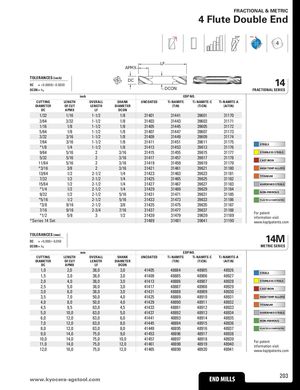

FRACTIONAL & METRIC 4 Flute Double End 30° POS 4 LF APMX TOLERANCES (inch) DC = +0.0000/–0.0020 DC DCON 14 DCON = h 6 FRACTIONAL SERIES inch EDP NO. CUTTING LENGTH OVERALL SHANK UNCOATED Ti-NAMITE Ti-NAMITE-C Ti-NAMITE-A DIAMETER OF CUT LENGTH DIAMETER (TiN) (TiCN) (AlTiN) DC APMX LF DCON 1/32 1/16 1-1/2 1/8 31401 31441 39601 31170 3/64 3/32 1-1/2 1/8 31403 31443 39603 31171 1/16 1/8 1-1/2 1/8 31405 31445 39605 31172 5/64 1/8 1-1/2 1/8 31407 31447 39607 31173 3/32 3/16 1-1/2 1/8 31409 31449 39609 31174 7/64 3/16 1-1/2 1/8 31411 31451 39611 31175 STEELS *1/8 1/4 1-1/2 1/8 31413 31453 39613 31176 9/64 5/16 2 3/16 31415 31455 39615 31177 STAINLESS STEELS 5/32 5/16 2 3/16 31417 31457 39617 31178 CAST IRON 11/64 5/16 2 3/16 31419 31459 39619 31179 *3/16 3/8 2 3/16 31421 31461 39621 31180 HIGH TEMP ALLOYS 13/64 1/2 2-1/2 1/4 31423 31463 39623 31181 TITANIUM 7/32 1/2 2-1/2 1/4 31425 31465 39625 31182 15/64 1/2 2-1/2 1/4 31427 31467 39627 31183 HARDENED STEELS *1/4 1/2 2-1/2 1/4 31429 31469 39629 31184 NON-FERROUS 9/32 1/2 2-1/2 5/16 31431 31471 39631 31185 *5/16 1/2 2-1/2 5/16 31433 31473 39633 31186 PLASTICS/COMPOSITES *3/8 9/16 2-1/2 3/8 31435 31475 39635 31187 7/16 9/16 2-3/4 7/16 31437 31477 39637 31188 For patent *1/2 5/8 3 1/2 31439 31479 39639 31189 information visit *Series 14 Set 31489 31481 39641 31190 www.ksptpatents.com TOLERANCES (mm) DC = +0,000/–0,050 14M DCON = h 6 METRIC SERIES mm EDP NO. CUTTING LENGTH OVERALL SHANK UNCOATED Ti-NAMITE Ti-NAMITE-C Ti-NAMITE-A DIAMETER OF CUT LENGTH DIAMETER (TiN) (TiCN) (AlTiN) DC APMX LF DCON 1,0 2,0 38,0 3,0 41405 48884 48905 48926 STEELS 1,5 3,0 38,0 3,0 41409 48885 48906 48927 2,0 4,0 38,0 3,0 41413 48886 48907 48928 STAINLESS STEELS 2,5 5,0 38,0 3,0 41417 48887 48908 48929 CAST IRON 3,0 6,0 38,0 3,0 41421 48888 48909 48930 3,5 7,0 50,0 4,0 41425 48889 48910 48931 HIGH TEMP ALLOYS 4,0 8,0 50,0 4,0 41429 48890 48911 48932 TITANIUM 4,5 9,5 63,0 4,5 41433 48891 48912 48933 5,0 10,0 63,0 5,0 41437 48892 48913 48934 HARDENED STEELS 6,0 12,0 63,0 6,0 41441 48893 48914 48935 NON-FERROUS 7,0 12,0 63,0 8,0 41445 48894 48915 48936 8,0 12,0 63,0 8,0 41449 48895 48916 48937 PLASTICS/COMPOSITES 9,0 14,0 75,0 9,0 41453 48896 48917 48938 10,0 14,0 75,0 10,0 41457 48897 48918 48939 For patent 11,0 14,0 75,0 12,0 41461 48898 48919 48940 information visit 12,0 16,0 75,0 12,0 41465 48899 48920 48941 www.ksptpatents.com 203 END MILLS www.kyocera-sgstool.com END MILLS
