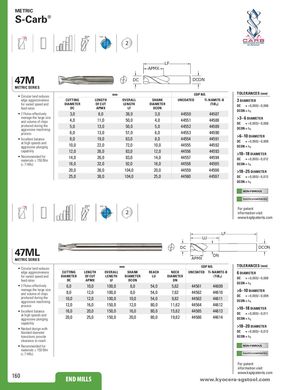

Общий каталог SGS 2021 - страница 160

METRIC S-Carb® 35° POS ® 2 LF APMX 47M DC DCON METRIC SERIES mm EDP NO. TOLERANCES (mm) • Circular land reduces edge aggressiveness CUTTING LENGTH OVERALL SHANK UNCOATED Ti-NAMITE-B 3 DIAMETER for varied speed and DIAMETER OF CUT LENGTH DIAMETER (TiB2) DC = +0,000/–0,006 feed rates DC APMX LF DCON DCON = h 6 • 2 Flutes effectively 3,0 8,0 38,0 3,0 44550 44587 manage the large size 4,0 11,0 50,0 4,0 44551 44588 >3–6 DIAMETER and volume of chips DC = +0,000/–0,008 produced during the 5,0 13,0 50,0 5,0 44552 44589 aggressive machining DCON = h 6 process 6,0 13,0 57,0 6,0 44553 44590 >6–10 DIAMETER • Excellent balance 8,0 19,0 63,0 8,0 44554 44591 DC = +0,000/–0,009 at high speeds and aggressive plunging 10,0 22,0 72,0 10,0 44555 44592 DCON = h 6 capability 12,0 26,0 83,0 12,0 44556 44593 >10–18 DIAMETER • Recommended for 14,0 26,0 83,0 14,0 44557 44594 materials ≤ 150 Bhn DC = +0,000/–0,012 (≤ 7 HRc) 16,0 32,0 92,0 16,0 44558 44595 DCON = h 6 20,0 38,0 104,0 20,0 44559 44596 >18–25 DIAMETER 25,0 38,0 104,0 25,0 44560 44597 DC = +0,000/–0,013 DCON = h 6 NON-FERROUS PLASTICS/COMPOSITES 35° POS For patent 2 information visit www.ksptpatents.com LF LU DC DCON 47ML APMX DN METRIC SERIES mm EDP NO. TOLERANCES (mm) • Circular land reduces edge aggressiveness CUTTING LENGTH OVERALL SHANK REACH NECK UNCOATED Ti-NAMITE-B 6 DIAMETER for varied speed and DIAMETER OF CUT LENGTH DIAMETER LU DIAMETER (TiB2) DC = +0,000/–0,008 feed rates DC APMX LF DCON DN DCON = h 6 • 2 Flutes effectively 6,0 10,0 100,0 6,0 54,0 5,62 44561 44609 manage the large size >6–10 DIAMETER and volume of chips 8,0 12,0 100,0 8,0 54,0 7,62 44562 44610 DC = +0,000/–0,009 produced during the 10,0 12,0 100,0 10,0 54,0 9,62 44563 44611 aggressive machining DCON = h 6 process 12,0 16,0 150,0 12,0 80,0 11,62 44564 44612 >10–18 DIAMETER • Excellent balance 16,0 20,0 150,0 16,0 80,0 15,62 44565 44613 DC = +0,000/–0,011 at high speeds and aggressive plunging 20,0 25,0 150,0 20,0 80,0 19,62 44566 44614 DCON = h 6 capability >18–20 DIAMETER • Necked design with blended diameter DC = +0,000/–0,013 transitions provide DCON = h 6 clearance to reach • Recommended for NON-FERROUS materials ≤ 150 Bhn (≤ 7 HRc) PLASTICS/COMPOSITES For patent information visit www.ksptpatents.com 160 END MILLS END MILLS www.kyocera-sgstool.com
