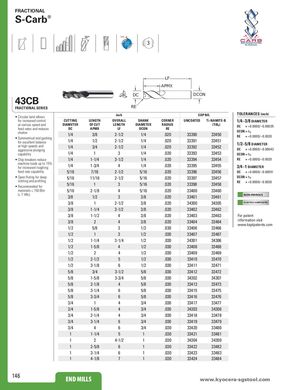

FRACTIONAL S-Carb® 38° POS ® 3 LF APMX DC DCON 43CB RE FRACTIONAL SERIES inch EDP NO. TOLERANCES (inch) • Circular land allows for increased control CUTTING LENGTH OVERALL SHANK CORNER UNCOATED Ti-NAMITE-B 1/4–3/8 DIAMETER at various speed and DIAMETER OF CUT LENGTH DIAMETER RADIUS (TiB2) DC = +0.0000/–0.00035 feed rates and reduces DC APMX LF DCON RE chatter DCON = h 6 1/4 3/8 2-1/2 1/4 .020 33390 33450 RE = +0.0000/–0.0020 • Symmetrical end gashing for excellent balance 1/4 1/2 2-1/2 1/4 .020 33391 33451 at high speeds and 1/2–5/8 DIAMETER 1/4 3/4 2-1/2 1/4 .020 33392 33452 DC = +0.0000/–0.00043 aggressive plunging capability 1/4 1 3 1/4 .020 33393 33453 DCON = h 6 • Chip breakers reduce 1/4 1-1/4 3-1/2 1/4 .020 33394 33454 RE = +0.0000/–0.0020 machine loads up to 15% for increased roughing 1/4 1-3/4 4 1/4 .020 33395 33455 3/4–1 DIAMETER feed rate capability 5/16 7/16 2-1/2 5/16 .020 33396 33456 DC = +0.0000/–0.00051 • Open fluting for deep 5/16 11/16 2-1/2 5/16 .020 33397 33457 DCON = h 6 slotting and profiling RE = +0.0000/–0.0020 • Recommended for 5/16 1 3 5/16 .020 33398 33458 materials ≤ 150 Bhn 5/16 2-1/8 4 5/16 .020 33400 33460 (≤ 7 HRc) NON-FERROUS 3/8 1/2 3 3/8 .020 33401 33461 3/8 1 2-1/2 3/8 .020 34300 34305 PLASTICS/COMPOSITES 3/8 1-1/4 3-1/2 3/8 .020 33402 33462 3/8 1-1/2 4 3/8 .020 33403 33463 For patent 3/8 2 4 3/8 .020 33404 33464 information visit www.ksptpatents.com 1/2 5/8 3 1/2 .030 33406 33466 1/2 1 3 1/2 .030 33407 33467 1/2 1-1/4 3-1/4 1/2 .030 34301 34306 1/2 1-5/8 4 1/2 .030 33408 33468 1/2 2 4 1/2 .030 33409 33469 1/2 2-1/2 5 1/2 .030 33410 33470 1/2 3-1/8 6 1/2 .030 33411 33471 5/8 3/4 3-1/2 5/8 .030 33412 33472 5/8 1-5/8 3-3/4 5/8 .030 34302 34307 5/8 2-1/8 4 5/8 .030 33413 33473 5/8 3-1/4 6 5/8 .030 33415 33475 5/8 3-3/4 6 5/8 .030 33416 33476 3/4 1 4 3/4 .030 33417 33477 3/4 1-5/8 4 3/4 .030 34303 34308 3/4 2-1/4 4 3/4 .030 33418 33478 3/4 3-1/4 6 3/4 .030 33419 33479 3/4 4 6 3/4 .030 33420 33480 1 1-1/4 5 1 .030 33421 33481 1 2 4-1/2 1 .030 34304 34309 1 2-5/8 6 1 .030 33422 33482 1 3-1/4 6 1 .030 33423 33483 1 4-1/8 7 1 .030 33424 33484 146 END MILLS END MILLS www.kyocera-sgstool.com
