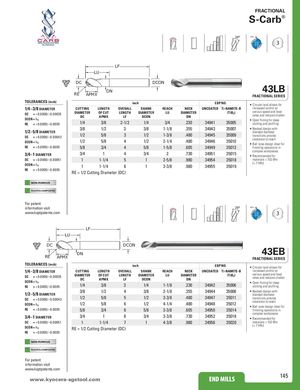

FRACTIONAL S-Carb® 38° POS ® 3 LF LU DC DCON RE APMX DN 43LB FRACTIONAL SERIES TOLERANCES (inch) inch EDP NO. • Circular land allows for 1/4–3/8 DIAMETER CUTTING LENGTH OVERALL SHANK REACH NECK UNCOATED Ti-NAMITE-B increased control at DIAMETER OF CUT LENGTH DIAMETER LU DIAMETER (TiB2) various speed and feed DC = +0.0000/–0.00035 rates and reduces chatter DC APMX LF DCON DN DCON = h 6 • Open fluting for deep RE = +0.0005/–0.0005 1/4 3/8 2-1/2 1/4 3/4 .230 34941 35005 slotting and profiling 3/8 1/2 3 3/8 1-1/8 .355 34943 35007 • Necked design with 1/2–5/8 DIAMETER blended diameter DC = +0.0000/–0.00043 1/2 5/8 3 1/2 1-3/8 .480 34945 35009 transitions provide clearance to reach DCON = h 6 1/2 5/8 4 1/2 2-1/4 .480 34946 35010 • Ball nose design ideal for RE = +0.0005/–0.0005 5/8 3/4 4 5/8 1-5/8 .605 34949 35013 finishing operations in complex workpieces 3/4–1 DIAMETER 3/4 1 4 3/4 2 .730 34951 35015 • Recommended for DC = +0.0000/–0.00051 1 1-1/4 5 1 2-5/8 .980 34954 35018 materials ≤ 150 Bhn DCON = h 6 (≤ 7 HRc) 1 1-1/4 6 1 3-3/8 .980 34955 35019 RE = +0.0005/–0.0005 RE = 1/2 Cutting Diameter (DC) NON-FERROUS PLASTICS/COMPOSITES For patent information visit 38° POS www.ksptpatents.com 3 LF LU DC DCON RE APMX DN 43EB FRACTIONAL SERIES TOLERANCES (inch) inch EDP NO. • Circular land allows for 1/4–3/8 DIAMETER CUTTING LENGTH OVERALL SHANK REACH NECK UNCOATED Ti-NAMITE-B increased control at DIAMETER OF CUT LENGTH DIAMETER LU DIAMETER (TiB2) various speed and feed DC = +0.0000/–0.00035 rates and reduces chatter DC APMX LF DCON DN DCON = h 6 • Open fluting for deep RE = +0.0005/–0.0005 1/4 3/8 3 1/4 1-1/8 .230 34942 35006 slotting and profiling 3/8 1/2 4 3/8 2-1/8 .355 34944 35008 • Necked design with 1/2–5/8 DIAMETER blended diameter DC = +0.0000/–0.00043 1/2 5/8 5 1/2 3-3/8 .480 34947 35011 transitions provide clearance to reach DCON = h 6 1/2 5/8 6 1/2 4-1/4 .480 34948 35012 • Ball nose design ideal for RE = +0.0005/–0.0005 5/8 3/4 6 5/8 3-3/8 .605 34950 35014 finishing operations in complex workpieces 3/4–1 DIAMETER 3/4 1 6 3/4 3-3/8 .730 34952 35016 • Recommended for DC = +0.0000/–0.00051 1 1-1/4 7 1 4-3/8 .980 34956 35020 materials ≤ 150 Bhn DCON = h 6 (≤ 7 HRc) RE = 1/2 Cutting Diameter (DC) RE = +0.0005/–0.0005 NON-FERROUS PLASTICS/COMPOSITES For patent information visit www.ksptpatents.com 145 END MILLS www.kyocera-sgstool.com END MILLS
