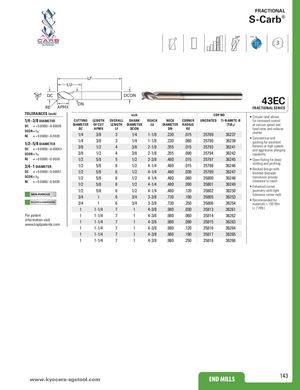

Общий каталог SGS 2021 - страница 143

FRACTIONAL S-Carb® 38° POS ® 3 LF LU DC DCON RE APMX DN 43EC FRACTIONAL SERIES TOLERANCES (inch) inch EDP NO. • Circular land allows 1/4–3/8 DIAMETER CUTTING LENGTH OVERALL SHANK REACH NECK CORNER UNCOATED Ti-NAMITE-B for increased control DC = +0.0000/–0.00035 DIAMETER OF CUT LENGTH DIAMETER LU DIAMETER RADIUS (TiB2) at various speed and DC APMX LF DCON DN RE feed rates and reduces DCON = h 6 chatter RE = +0.0000/–0.0020 1/4 3/8 3 1/4 1-1/8 .230 .015 35789 36237 • Symmetrical end 1/4 3/8 3 1/4 1-1/8 .230 .060 35790 36238 gashing for excellent 1/2–5/8 DIAMETER 3/8 1/2 4 3/8 2-1/8 .355 .015 35793 36241 balance at high speeds DC = +0.0000/–0.00043 and aggressive plunging DCON = h 6 3/8 1/2 4 3/8 2-1/8 .355 .090 35794 36242 capability RE = +0.0000/–0.0020 1/2 5/8 5 1/2 3-3/8 .480 .015 35797 36245 • Open fluting for deep slotting and profiling 3/4–1 DIAMETER 1/2 5/8 6 1/2 4-1/4 .480 .015 35798 36246 • Necked design with DC = +0.0000/–0.00051 1/2 5/8 6 1/2 4-1/4 .480 .030 35799 36247 blended diameter DCON = h 6 transitions provide 1/2 5/8 6 1/2 4-1/4 .480 .060 35800 36248 RE = +0.0000/–0.0020 clearance to reach 1/2 5/8 6 1/2 4-1/4 .480 .090 35801 36249 • Enhanced corner 1/2 5/8 6 1/2 4-1/4 .480 .120 35802 36250 geometry with tight NON-FERROUS tolerance corner radii 3/4 1 6 3/4 3-3/8 .730 .190 35805 36253 • Recommended for PLASTICS/COMPOSITES 3/4 1 6 3/4 3-3/8 .730 .250 35806 36254 materials ≤ 150 Bhn 1 1-1/4 7 1 4-3/8 .980 .030 35813 36261 (≤ 7 HRc) For patent 1 1-1/4 7 1 4-3/8 .980 .060 35814 36262 information visit 1 1-1/4 7 1 4-3/8 .980 .090 35815 36263 www.ksptpatents.com 1 1-1/4 7 1 4-3/8 .980 .120 35816 36264 1 1-1/4 7 1 4-3/8 .980 .190 35817 36265 1 1-1/4 7 1 4-3/8 .980 .250 35818 36266 143 END MILLS www.kyocera-sgstool.com END MILLS
