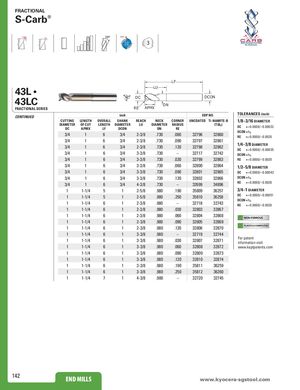

Общий каталог SGS 2021 - страница 142

FRACTIONAL S-Carb® 38° POS ® 3 LF LU 43L • DC DCON 43LC RE APMX DN FRACTIONAL SERIES inch EDP NO. TOLERANCES (inch) CONTINUED CUTTING LENGTH OVERALL SHANK REACH NECK CORNER UNCOATED Ti-NAMITE-B 1/8–3/16 DIAMETER DIAMETER OF CUT LENGTH DIAMETER LU DIAMETER RADIUS (TiB2) DC = +0.0000/–0.00032 DC APMX LF DCON DN RE DCON = h 6 3/4 1 6 3/4 2-3/8 .730 .060 32796 32860 RE = +0.0000/–0.0020 3/4 1 6 3/4 2-3/8 .730 .090 32797 32861 1/4–3/8 DIAMETER 3/4 1 6 3/4 2-3/8 .730 .120 32798 32862 DC = +0.0000/–0.00035 3/4 1 6 3/4 3-3/8 .730 – 32717 32742 DCON = h 6 3/4 1 6 3/4 3-3/8 .730 .030 32799 32863 RE = +0.0000/–0.0020 3/4 1 6 3/4 3-3/8 .730 .060 32800 32864 1/2–5/8 DIAMETER 3/4 1 6 3/4 3-3/8 .730 .090 32801 32865 DC = +0.0000/–0.00043 3/4 1 6 3/4 3-3/8 .730 .120 32802 32866 DCON = h 6 RE = +0.0000/–0.0020 3/4 1 6 3/4 4-3/8 .730 – 32699 34896 1 1-1/4 5 1 2-5/8 .980 .190 35809 36257 3/4–1 DIAMETER DC = +0.0000/–0.00051 1 1-1/4 5 1 2-5/8 .980 .250 35810 36258 DCON = h 6 1 1-1/4 6 1 2-3/8 .980 – 32718 32743 RE = +0.0000/–0.0020 1 1-1/4 6 1 2-3/8 .980 .030 32803 32867 1 1-1/4 6 1 2-3/8 .980 .060 32804 32868 NON-FERROUS 1 1-1/4 6 1 2-3/8 .980 .090 32805 32869 PLASTICS/COMPOSITES 1 1-1/4 6 1 2-3/8 .980 .120 32806 32870 1 1-1/4 6 1 3-3/8 .980 – 32719 32744 For patent 1 1-1/4 6 1 3-3/8 .980 .030 32807 32871 information visit 1 1-1/4 6 1 3-3/8 .980 .060 32808 32872 www.ksptpatents.com 1 1-1/4 6 1 3-3/8 .980 .090 32809 32873 1 1-1/4 6 1 3-3/8 .980 .120 32810 32874 1 1-1/4 6 1 3-3/8 .980 .190 35811 36259 1 1-1/4 6 1 3-3/8 .980 .250 35812 36260 1 1-1/4 7 1 4-3/8 .980 – 32720 32745 142 END MILLS END MILLS www.kyocera-sgstool.com
