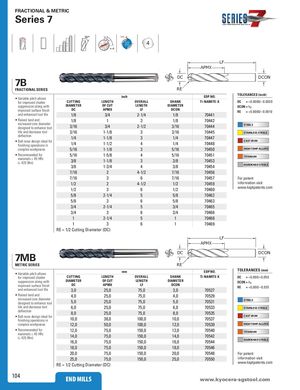

FRACTIONAL & METRIC Series 7 38° POS 4 ≠ LF APMX DC DCON 7B RE FRACTIONAL SERIES TOLERANCES (inch) inch EDP NO. • Variable pitch allows for improved chatter CUTTING LENGTH OVERALL SHANK Ti-NAMITE-X DC = +0.0000/–0.0020 suppression along with DIAMETER OF CUT LENGTH DIAMETER DCON = h 6 improved surface finish DC APMX LF DCON RE = +0.0000/–0.0010 and enhanced tool life 1/8 3/4 2-1/4 1/8 70441 • Raised land and 1/8 1 3 1/8 70442 increased core diameter STEELS designed to enhance tool 3/16 3/4 2-1/2 3/16 70444 life and decrease tool 3/16 1-1/8 3 3/16 70445 STAINLESS STEELS deflection 1/4 1-1/8 3 1/4 70447 • Ball nose design ideal for CAST IRON finishing operations in 1/4 1-1/2 4 1/4 70448 complex workpieces 5/16 1-1/8 3 5/16 70450 HIGH TEMP ALLOYS • Recommended for 5/16 1-5/8 4 5/16 70451 TITANIUM materials ≤ 45 HRc (≤ 420 Bhn) 3/8 1-1/8 3 3/8 70453 HARDENED STEELS 3/8 1-3/4 4 3/8 70454 7/16 2 4-1/2 7/16 70456 7/16 3 6 7/16 70457 For patent 1/2 2 4-1/2 1/2 70459 information visit www.ksptpatents.com 1/2 3 6 1/2 70460 5/8 2-1/4 5 5/8 70462 5/8 3 6 5/8 70463 3/4 2-1/4 5 3/4 70465 3/4 3 6 3/4 70466 1 2-1/4 5 1 70468 1 3 6 1 70469 RE = 1/2 Cutting Diameter (DC) LF APMX DC DCON 7MB RE METRIC SERIES mm EDP NO. TOLERANCES (mm) • Variable pitch allows for improved chatter CUTTING LENGTH OVERALL SHANK Ti-NAMITE-X DC = +0,000/+0,050 suppression along with DIAMETER OF CUT LENGTH DIAMETER DCON = h 6 improved surface finish DC APMX LF DCON RE = +0,000/–0,025 and enhanced tool life 3,0 25,0 75,0 3,0 70527 • Raised land and 4,0 25,0 75,0 4,0 70529 increased core diameter STEELS designed to enhance tool 5,0 25,0 75,0 5,0 70531 life and decrease tool 6,0 25,0 75,0 6,0 70533 STAINLESS STEELS deflection 8,0 25,0 75,0 8,0 70535 • Ball nose design ideal for CAST IRON finishing operations in 10,0 38,0 100,0 10,0 70537 complex workpieces 12,0 50,0 100,0 12,0 70539 HIGH TEMP ALLOYS • Recommended for 12,0 75,0 150,0 12,0 70540 TITANIUM materials ≤ 45 HRc (≤ 420 Bhn) 14,0 75,0 150,0 14,0 70542 HARDENED STEELS 16,0 75,0 150,0 16,0 70544 18,0 75,0 150,0 18,0 70546 20,0 75,0 150,0 20,0 70548 For patent 25,0 75,0 150,0 25,0 70550 information visit www.ksptpatents.com RE = 1/2 Cutting Diameter (DC) 104 END MILLS END MILLS www.kyocera-sgstool.com
