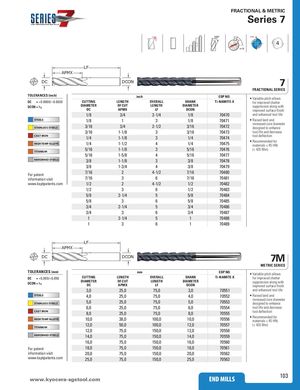

FRACTIONAL & METRIC Series 7 38° POS 4 ≠ LF APMX DC DCON 7 FRACTIONAL SERIES TOLERANCES (inch) inch EDP NO. • Variable pitch allows DC = +0.0000/–0.0020 CUTTING LENGTH OVERALL SHANK Ti-NAMITE-X for improved chatter DCON = h 6 DIAMETER OF CUT LENGTH DIAMETER suppression along with DC APMX LF DCON improved surface finish 1/8 3/4 2-1/4 1/8 70470 and enhanced tool life STEELS 1/8 1 3 1/8 70471 • Raised land and increased core diameter STAINLESS STEELS 3/16 3/4 2-1/2 3/16 70472 designed to enhance 3/16 1-1/8 3 3/16 70473 tool life and decrease CAST IRON tool deflection 1/4 1-1/8 3 1/4 70474 • Recommended for HIGH TEMP ALLOYS 1/4 1-1/2 4 1/4 70475 materials ≤ 45 HRc TITANIUM 5/16 1-1/8 3 5/16 70476 (≤ 420 Bhn) 5/16 1-5/8 4 5/16 70477 HARDENED STEELS 3/8 1-1/8 3 3/8 70478 3/8 1-3/4 4 3/8 70479 For patent 7/16 2 4-1/2 7/16 70480 information visit 7/16 3 6 7/16 70481 www.ksptpatents.com 1/2 2 4-1/2 1/2 70482 1/2 3 6 1/2 70483 5/8 2-1/4 5 5/8 70484 5/8 3 6 5/8 70485 3/4 2-1/4 5 3/4 70486 3/4 3 6 3/4 70487 1 2-1/4 5 1 70488 1 3 6 1 70489 LF APMX DC DCON 7M METRIC SERIES TOLERANCES (mm) mm EDP NO. • Variable pitch allows DC = +0,000/+0,050 CUTTING LENGTH OVERALL SHANK Ti-NAMITE-X for improved chatter DIAMETER OF CUT LENGTH DIAMETER suppression along with DCON = h 6 DC APMX LF DCON improved surface finish 3,0 25,0 75,0 3,0 70551 and enhanced tool life STEELS 4,0 25,0 75,0 4,0 70552 • Raised land and increased core diameter STAINLESS STEELS 5,0 25,0 75,0 5,0 70553 designed to enhance 6,0 25,0 75,0 6,0 70554 tool life and decrease CAST IRON tool deflection 8,0 25,0 75,0 8,0 70555 • Recommended for HIGH TEMP ALLOYS 10,0 38,0 100,0 10,0 70556 materials ≤ 45 HRc TITANIUM 12,0 50,0 100,0 12,0 70557 (≤ 420 Bhn) 12,0 75,0 150,0 12,0 70558 HARDENED STEELS 14,0 75,0 150,0 14,0 70559 16,0 75,0 150,0 16,0 70560 For patent 18,0 75,0 150,0 18,0 70561 information visit 20,0 75,0 150,0 20,0 70562 www.ksptpatents.com 25,0 75,0 150,0 25,0 70563 103 END MILLS www.kyocera-sgstool.com END MILLS
