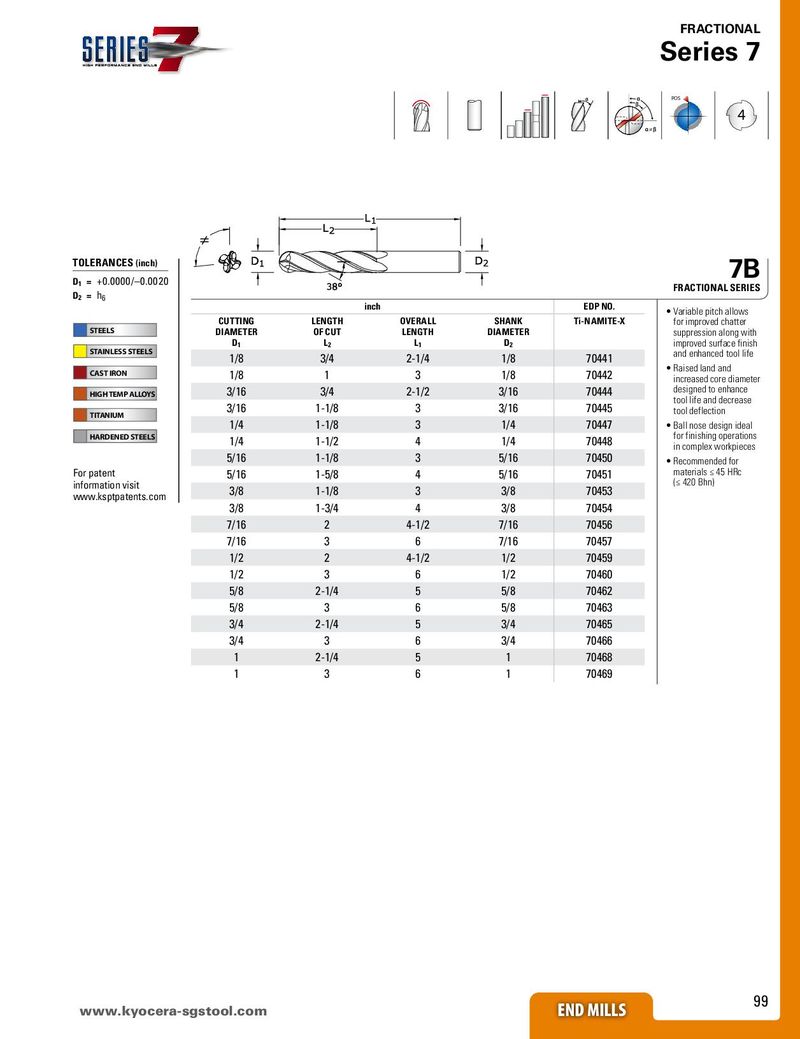

FRACTIONAL Series 7 POS 4 ≠ TOLERANCES (inch) D1 = +0.0000/–0.0020 7B FRACTIONAL SERIES D2 = h6 inch EDP NO. • Variable pitch allows CUTTING LENGTH OVERALL SHANK Ti-NAMITE-X for improved chatter STEELS DIAMETER OF CUT LENGTH DIAMETER suppression along with D1 L2 L1 D2 improved surface finish STAINLESS STEELS and enhanced tool life 1/8 3/4 2-1/4 1/8 70441 • Raised land and CAST IRON 1/8 1 3 1/8 70442 increased core diameter HIGH TEMP ALLOYS 3/16 3/4 2-1/2 3/16 70444 designed to enhance tool life and decrease TITANIUM 3/16 1-1/8 3 3/16 70445 tool deflection 1/4 1-1/8 3 1/4 70447 • Ball nose design ideal HARDENED STEELS for finishing operations 1/4 1-1/2 4 1/4 70448 in complex workpieces 5/16 1-1/8 3 5/16 70450 • Recommended for For patent 5/16 1-5/8 4 5/16 70451 materials ≤ 45 HRc information visit (≤ 420 Bhn) www.ksptpatents.com 3/8 1-1/8 3 3/8 70453 3/8 1-3/4 4 3/8 70454 7/16 2 4-1/2 7/16 70456 7/16 3 6 7/16 70457 1/2 2 4-1/2 1/2 70459 1/2 3 6 1/2 70460 5/8 2-1/4 5 5/8 70462 5/8 3 6 5/8 70463 3/4 2-1/4 5 3/4 70465 3/4 3 6 3/4 70466 1 2-1/4 5 1 70468 1 3 6 1 70469 99 END MILLS www.kyocera-sgstool.com END MILLS
