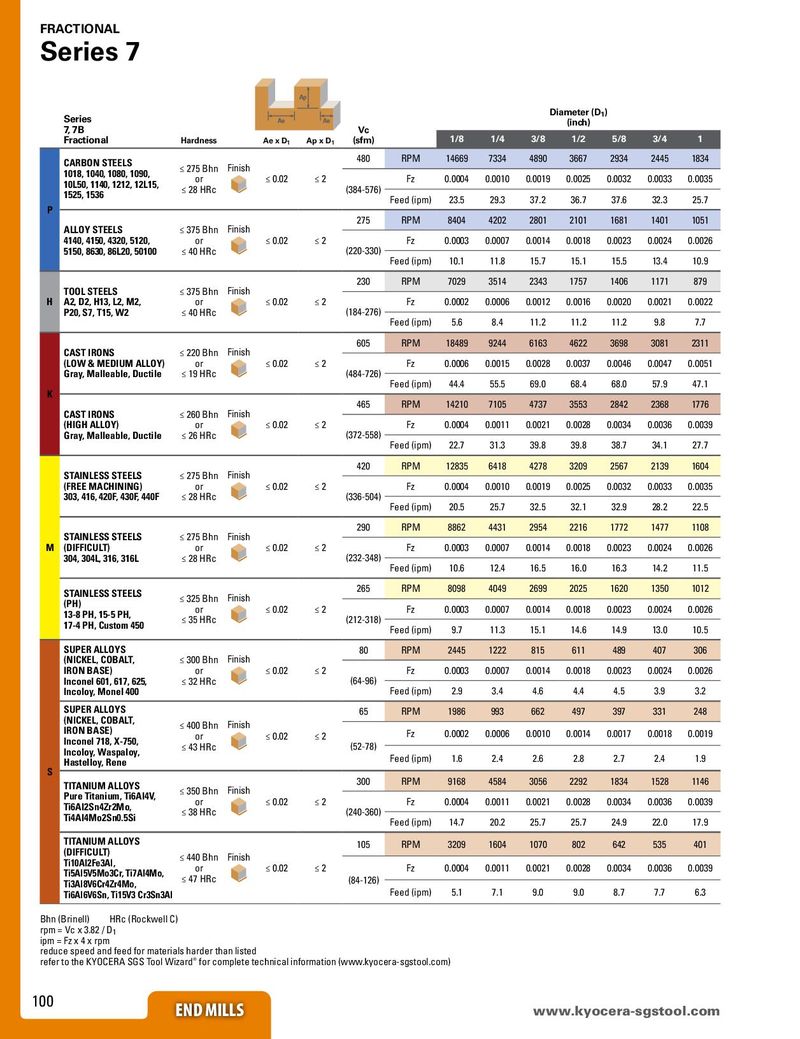

Series 7, 7B			Ae	Ap Ae	Vc				D	iameter ( (inch)	D1)
Fractional	Hardness		Ae x D1	Ap x D1	(sfm)		1/8	1/4	3/8	1/2	5/8	3/4	1
CARBON STEELS	≤ 275 Bhn	Finish			480	RPM	14669	7334	4890	3667	2934	2445	1834
1018, 1040, 1080, 1090, 10L50, 1140, 1212, 12L15,	or ≤ 28 HR		≤ 0.02	≤ 2	(384-576)	Fz	0.0004	0.0010	0.0019	0.0025	0.0032	0.0033	0.0035
P 1525, 1536	c					Feed (ipm)	23.5	29.3	37.2	36.7	37.6	32.3	25.7
ALLOY STEELS	≤ 375 Bhn	Finish			275	RPM	8404	4202	2801	2101	1681	1401	1051
4140, 4150, 4320, 5120,	or		≤ 0.02	≤ 2	220330	Fz	0.0003	0.0007	0.0014	0.0018	0.0023	0.0024	0.0026
5150, 8630, 86L20, 50100	≤ 40 HRc				(-)	Feed (ipm)	10.1	11.8	15.7	15.1	15.5	13.4	10.9
		Fiih			230	RPM	7029	3514	2343	1757	1406	1171	879
H TOOL STEELS A2, D2, H13, L2, M2, P20 S7 T15 W2	≤ 375 Bhn or ≤ 40 HR	ns	≤ 0.02	≤ 2	(184-276)	Fz	0.0002	0.0006	0.0012	0.0016	0.0020	0.0021	0.0022
, , ,	c					Feed (ipm)	5.6	8.4	11.2	11.2	11.2	9.8	7.7
CAST IRONS	≤ 220 Bhn	Finish			605	RPM	18489	9244	6163	4622	3698	3081	2311
(LOW & MEDIUM ALLOY)	or		≤ 0.02	≤ 2		Fz	0.0006	0.0015	0.0028	0.0037	0.0046	0.0047	0.0051
Gray, Malleable, Ductile	≤ 19 HRc				(484-726)	Feed (ipm)	44.4	55.5	69.0	68.4	68.0	57.9	47.1
K					465	RPM	14210	7105	4737	3553	2842	2368	1776
CAST IRONS (HIGH ALLOY)	≤ 260 Bhn or	Finish	≤ 0.02	≤ 2		Fz	0.0004	0.0011	0.0021	0.0028	0.0034	0.0036	0.0039
Gray, Malleable, Ductile	≤ 26 HRc				(372-558)	Feed (ipm)	22.7	31.3	39.8	39.8	38.7	34.1	27.7
STAINLESS STEELS	≤ 275 Bhn	Finish			420	RPM	12835	6418	4278	3209	2567	2139	1604
(FREE MACHINING)	or		≤ 0.02	≤ 2		Fz	0.0004	0.0010	0.0019	0.0025	0.0032	0.0033	0.0035
303, 416, 420F, 430F, 440F	≤ 28 HRc				(336-504)	Feed (ipm)	20.5	25.7	32.5	32.1	32.9	28.2	22.5
STAINLESS STEELS	≤ 275 Bhn	Finish			290	RPM	8862	4431	2954	2216	1772	1477	1108
M (DIFFICULT)	or		≤ 0.02	≤ 2	232348	Fz	0.0003	0.0007	0.0014	0.0018	0.0023	0.0024	0.0026
304, 304L, 316, 316L	≤ 28 HRc				(-)	Feed (ipm)	10.6	12.4	16.5	16.0	16.3	14.2	11.5
STAINLESS STEELS	≤ 325 Bhn	Finish			265	RPM	8098	4049	2699	2025	1620	1350	1012
(PH) 13-8 PH 15-5 PH	or		≤ 0.02	≤ 2		Fz	0.0003	0.0007	0.0014	0.0018	0.0023	0.0024	0.0026
, , 17-4 PH, Custom 450	≤ 35 HRc				(212-318)	Feed (ipm)	9.7	11.3	15.1	14.6	14.9	13.0	10.5
SUPER ALLOYS (NICKEL COBALT	≤ 300 Bhn	Finish			80	RPM	2445	1222	815	611	489	407	306
, , IRON BASE)	or		≤ 0.02	≤ 2		Fz	0.0003	0.0007	0.0014	0.0018	0.0023	0.0024	0.0026
Inconel 601, 617, 625, Incoloy, Monel 400	≤ 32 HRc				(64-96)	Feed (ipm)	2.9	3.4	4.6	4.4	4.5	3.9	3.2
SUPER ALLOYS (NICKEL COBALT					65	RPM	1986	993	662	497	397	331	248
, , IRON BASE)	≤ 400 Bhn or	Finish	≤ 002	≤ 2		Fz	0.0002	0.0006	0.0010	0.0014	0.0017	0.0018	0.0019
Inconel 718, X-750,			.
Incoloy, Waspaloy, Hastelloy, Rene	≤ 43 HRc				(52-78)	Feed (ipm)	1.6	2.4	2.6	2.8	2.7	2.4	1.9
S TITANIUM ALLOYS	≤ 350 Bhn	Finish			300	RPM	9168	4584	3056	2292	1834	1528	1146
Pure Titanium, Ti6Al4V, Ti6Al2Sn4Zr2Mo	or		≤ 0.02	≤ 2		Fz	0.0004	0.0011	0.0021	0.0028	0.0034	0.0036	0.0039
, Ti4Al4Mo2Sn0.5Si	≤ 38 HRc				(240-360)	Feed (ipm)	14.7	20.2	25.7	25.7	24.9	22.0	17.9
TITANIUM ALLOYS (DIFFICULT)	≤ 440 Bh	Finish			105	RPM	3209	1604	1070	802	642	535	401
Ti10Al2Fe3Al, Ti5Al5V5Mo3Cr, Ti7Al4Mo,	n or ≤ 47 HRc		≤ 0.02	≤ 2	(84-126)	Fz	0.0004	0.0011	0.0021	0.0028	0.0034	0.0036	0.0039
Ti3Al8V6Cr4Zr4Mo, Ti6Al6V6Sn, Ti15V3 Cr3Sn3Al						Feed (ipm)	5.1	7.1	9.0	9.0	8.7	7.7	6.3

Bhn (Brinell) HRc (Rockwell C) rpm = Vc x 3.82 / D1 ipm = Fz x 4 x rpm
