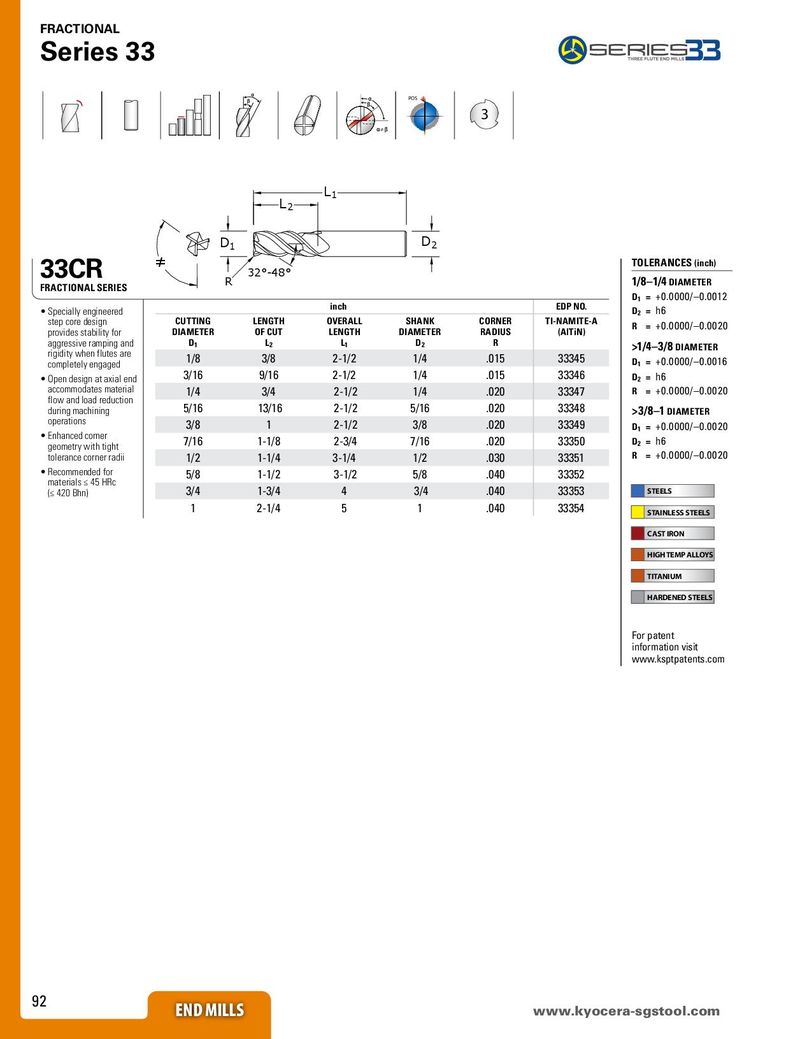

Общий каталог SGS 2018 - страница 92

FRACTIONAL
Series 33
POS

3
≠


L1
L2

D1 D2
≠
33CR R
32°-48°
TOLERANCES (inch)
1/8–1/4 DIAMETER
FRACTIONAL SERIES
D1 = +0.0000/–0.0012
• Specially engineered inch EDP NO. D2 = h6
step core design CUTTING LENGTH OVERALL SHANK CORNER TI-NAMITE-A
R = +0.0000/–0.0020
provides stability for DIAMETER OF CUT LENGTH DIAMETER RADIUS (AlTiN)
aggressive ramping and D1 L2 L1 D2 R >1/4–3/8 DIAMETER
rigidity when flutes are
completely engaged
1/8 3/8 2-1/2 1/4 .015 33345 D1 = +0.0000/–0.0016
• Open design at axial end 3/16 9/16 2-1/2 1/4 .015 33346 D2 = h6
accommodates material 1/4 3/4 2-1/2 1/4 .020 33347 R = +0.0000/–0.0020
flow and load reduction
during machining 5/16 13/16 2-1/2 5/16 .020 33348 >3/8–1 DIAMETER
operations 3/8 1 2-1/2 3/8 .020 33349 D1 = +0.0000/–0.0020
• Enhanced corner
geometry with tight 7/16 1-1/8 2-3/4 7/16 .020 33350 D2 = h6
tolerance corner radii 1/2 1-1/4 3-1/4 1/2 .030 33351 R = +0.0000/–0.0020
• Recommended for 5/8 1-1/2 3-1/2 5/8 .040 33352
materials ≤ 45 HRc
(≤ 420 Bhn) 3/4 1-3/4 4 3/4 .040 33353 STEELS
1 2-1/4 5 1 .040 33354 STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS

For patent
information visit
www.ksptpatents.com


92
END MILLS END MILLS
www.kyocera-sgstool.com
