Series 66M, 66MCR			Ae	Ap Ae	Vc				D	iameter ( (mm)	D1)
Metric	Hardness		Ae x D1	Ap x D1	(m/min)		6	8	10	12	16	20	25
		Profile			117	RPM	6220	4665	3732	3110	2333	1866	1493
			≤ 0.05	≤ 1	(94141)	Fz	0.017	0.030	0.037	0.043	0.059	0.064	0.065
STAINLESS STEELS (DIFFICULT)	≤ 275 Bhn				-	Feed (mm/min)	731	975	975	1209	1236	1314	1067
304, 304L, 316, 316L	or ≤ 28 HRc	Finish			141	RPM	7465	5598	4479	3732	2799	2239	1791
			≤ 0.02	≤ 2	(113-169)	Fz	0.013	0.024	0.030	0.035	0.047	0.051	0.052
M						Feed (mm/min)	702	17	936	1161	1187	1261	1025
		Pfil			108	RPM	5736	4302	3441	2868	2151	1721	1377
		roe	≤ 0.05	≤ 1		Fz	0.017	0.030	0.037	0.043	0.059	0.064	0.065
STAINLESS STEELS (PH)	≤ 325 Bhn				(87-130)	Feed (mm/min)	674	899	899	1115	1140	1211	984
13-8 PH, 15-5 PH, 17-4 PH, Custom 450	or ≤ 35 HRc	Finish			130	RPM	6883	5162	4130	3441	2581	2065	1652
			≤ 0.02	≤ 2	(104156)	Fz	0.013	0.024	0.030	0.035	0.047	0.051	0.052
					-	Feed (mm/min)	647	863	863	1070	1094	1163	945
		Pfil			32	RPM	1696	1272	1018	848	636	509	407
SUPER ALLOYS		roe	≤ 0.05	≤ 1		Fz	0.017	0.030	0.037	0.043	0.059	0.064	0.065
(NICKEL, COBALT,	≤ 300 Bhn				(26-38)	Feed (mm/min)	199	266	213	330	337	358	291
IRON BASE) Inconel 601, 617, 625,	or ≤ 32 HRc	Fiih			38	RPM	2036	1527	1221	1018	763	611	489
Incoloy, Monel 400		ns	≤ 0.02	≤ 2		Fz	0.013	0.024	0.030	0.035	0.047	0.051	0.052
					(31-46)	Feed (mm/min)	192	255	255	317	324	344	279
		Profile			26	RPM	1373	1030	824	687	515	412	330
SUPER ALLOYS			≤ 0.05	≤ 1		Fz	0.012	0.019	0.024	0.026	0.036	0.040	0.040
(NICKEL, COBALT, IRON BASE)	≤ 400 Bhn				(21-31)	Feed (mm/min)	115	138	138	163	166	181	145
Inconel 718, X-750, Incoloy, Waspaloy,	or ≤ 43 HRc				31	RPM	1648	1236	989	824	618	494	396
Hastelloy, Rene		Finish	≤ 0.02	≤ 2		Fz	0.010	0.015	0.019	0.021	0.029	0.032	0.032
					(25-37)	Feed (mm/min)	111	133	133	157	159	174	139
S		Pfil			119	RPM	6301	4726	3781	3151	2363	1890	1512
TITANIUM ALLOYS		roe	≤ 0.05	≤ 1	(95143)	Fz	0.019	0.032	0.040	0.050	0.067	0.072	0.073
Pure Titanium,	≤ 350 Bhn				-	Feed (mm/min)	847	1059	1059	1429	1415	1497	1206
Ti6Al4V, Ti6Al2Sn4Zr2Mo,	or ≤ 38 HRc	Finish			143	RPM	7561	5671	4537	3781	2836	2268	1815
Ti4Al4Mo2Sn0.5Si			≤ 0.02	≤ 2		Fz	0.015	0.026	0.032	0.040	0.053	0.058	0.058
					(114-171)	Feed (mm/min)	813	1016	1016	1372	1359	1437	1158
		Profile			43	RPM	2262	1696	1357	1131	848	679	543
TITANIUM ALLOYS (DIFFICULT)			≤ 0.05	≤ 1		Fz	0.019	0.032	0.040	0.050	0.067	0.072	0.073
Ti10Al2Fe3Al, Ti5Al5V5Mo3Cr,	≤ 440 Bhn				(34-51)	Feed (mm/min)	304	380	380	513	508	537	433
Ti7Al4Mo, Ti3Al8V6Cr4Zr4Mo,	or ≤ 47 HRc	Finish			51	RPM	2714	2036	1629	1357	1018	814	651
Ti6Al6V6Sn, Ti15V3 Cr3Sn3Al			≤ 0.02	≤ 2		Fz	0.015	0.026	0.032	0.040	0.053	0.058	0.058
					(41-61)	Feed (mm/min)	292	365	365	492	488	516	416

Bhn (Brinell) HRc (Rockwell C) rpm = (Vc x 1000) / (D x 3.14) 1 mm/min = Fz x number of flutes x rpm reduce speed and feed for materials harder than listed

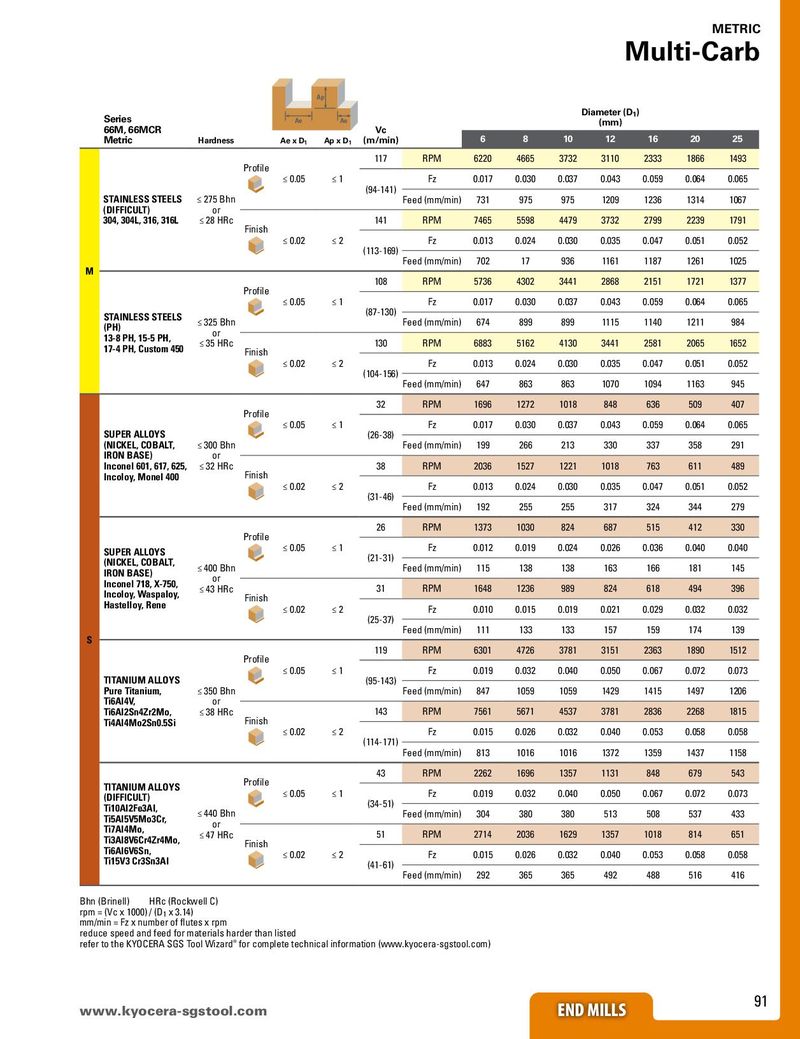

Общий каталог SGS 2018 - страница 91
