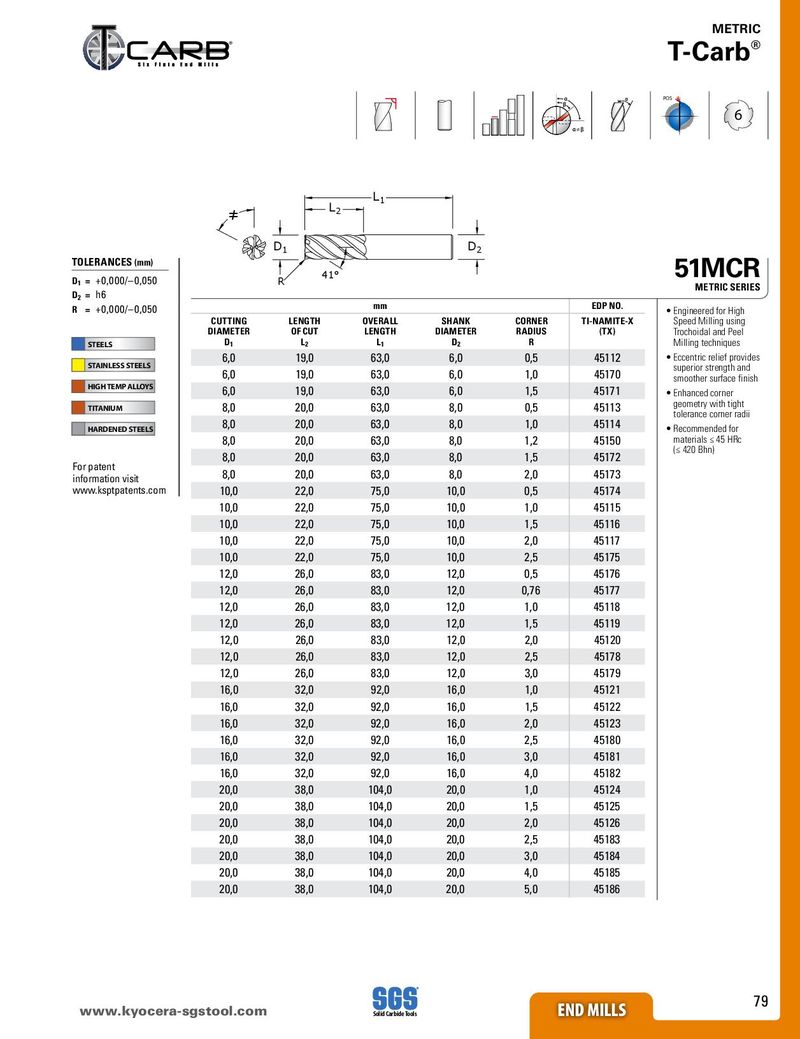

METRIC ® T-Carb® POS 6 ≠ L1 L2 ≠ D1 D2 TOLERANCES (mm) D1 = +0,000/–0,050 R 41° 51MCR METRIC SERIES D2 = h6 R = +0,000/–0,050 mm EDP NO. • Engineered for High CUTTING LENGTH OVERALL SHANK CORNER TI-NAMITE-X Speed Milling using DIAMETER OF CUT LENGTH DIAMETER RADIUS (TX) Trochoidal and Peel STEELS D1 L2 L1 D2 R Milling techniques 6,0 19,0 63,0 6,0 0,5 45112 • Eccentric relief provides STAINLESS STEELS superior strength and 6,0 19,0 63,0 6,0 1,0 45170 smoother surface finish HIGH TEMP ALLOYS 6,0 19,0 63,0 6,0 1,5 45171 • Enhanced corner TITANIUM 8,0 20,0 63,0 8,0 0,5 45113 geometry with tight tolerance corner radii HARDENED STEELS 8,0 20,0 63,0 8,0 1,0 45114 • Recommended for 8,0 20,0 63,0 8,0 1,2 45150 materials ≤ 45 HRc (≤ 420 Bhn) 8,0 20,0 63,0 8,0 1,5 45172 For patent information visit 8,0 20,0 63,0 8,0 2,0 45173 www.ksptpatents.com 10,0 22,0 75,0 10,0 0,5 45174 10,0 22,0 75,0 10,0 1,0 45115 10,0 22,0 75,0 10,0 1,5 45116 10,0 22,0 75,0 10,0 2,0 45117 10,0 22,0 75,0 10,0 2,5 45175 12,0 26,0 83,0 12,0 0,5 45176 12,0 26,0 83,0 12,0 0,76 45177 12,0 26,0 83,0 12,0 1,0 45118 12,0 26,0 83,0 12,0 1,5 45119 12,0 26,0 83,0 12,0 2,0 45120 12,0 26,0 83,0 12,0 2,5 45178 12,0 26,0 83,0 12,0 3,0 45179 16,0 32,0 92,0 16,0 1,0 45121 16,0 32,0 92,0 16,0 1,5 45122 16,0 32,0 92,0 16,0 2,0 45123 16,0 32,0 92,0 16,0 2,5 45180 16,0 32,0 92,0 16,0 3,0 45181 16,0 32,0 92,0 16,0 4,0 45182 20,0 38,0 104,0 20,0 1,0 45124 20,0 38,0 104,0 20,0 1,5 45125 20,0 38,0 104,0 20,0 2,0 45126 20,0 38,0 104,0 20,0 2,5 45183 20,0 38,0 104,0 20,0 3,0 45184 20,0 38,0 104,0 20,0 4,0 45185 20,0 38,0 104,0 20,0 5,0 45186 79 END MILLS www.kyocera-sgstool.com Solid Carbide Tools END MILLS
