POS
6

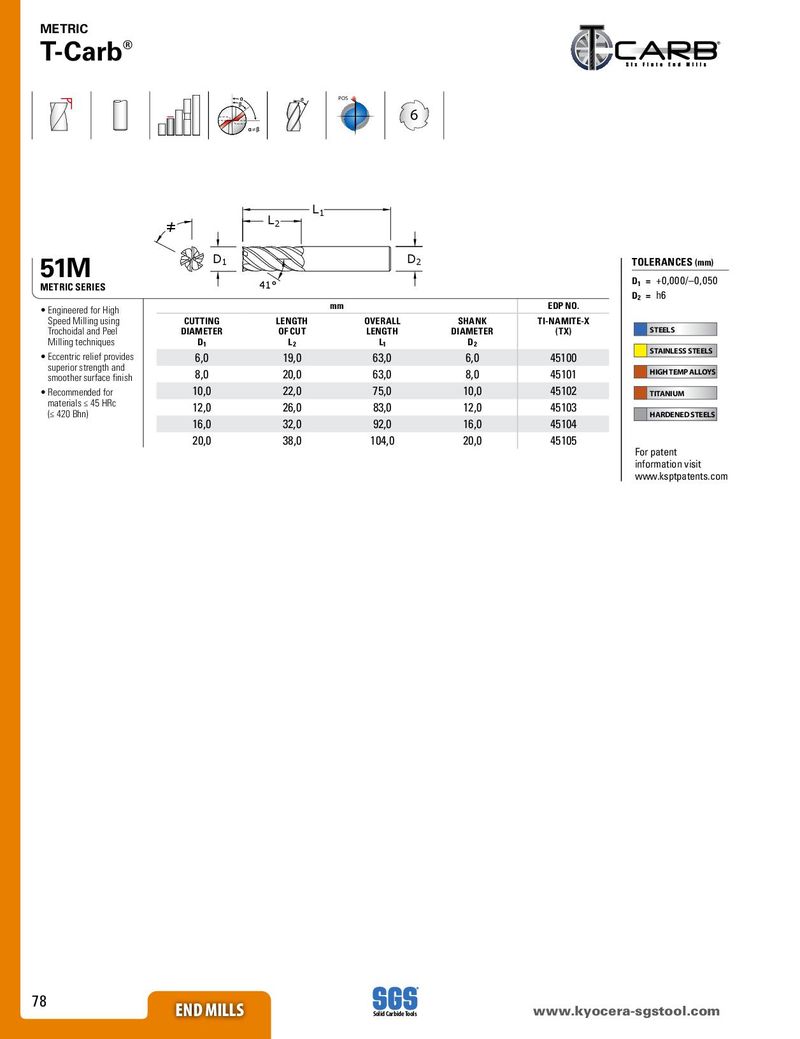

| 51M METRIC SERIES | ≠ | 1 D | L L2 41° | 1 | 2 D | ||
| • Engineered for High | mm | EDP NO. | |||||
| Speed Milling using Trochoidal and Peel Milling techniques | CUTTIN DIAMET D1 | G ER | LENGTH OF CUT L2 | OVERALL LENGTH L1 | SHANK DIAMETER D2 | TI-NAMITE-X (TX) | |
| • Eccentric relief provides | 6,0 | 19,0 | 63,0 | 6,0 | 45100 | ||
| superior strength and smoother surface finish | 8,0 | 20,0 | 63,0 | 8,0 | 45101 | ||
| • Recommended for | 10,0 | 22,0 | 75,0 | 10,0 | 45102 | ||
| materials ≤ 45 HRc (≤ 420 Bhn) | 12,0 | 26,0 | 83,0 | 12,0 | 45103 | ||
| 16,0 | 32,0 | 92,0 | 16,0 | 45104 | |||
| 20,0 | 38,0 | 104,0 | 20,0 | 45105 |
D = h6 2
TITANIUM
For patent information visit www.ksptpatents.com
